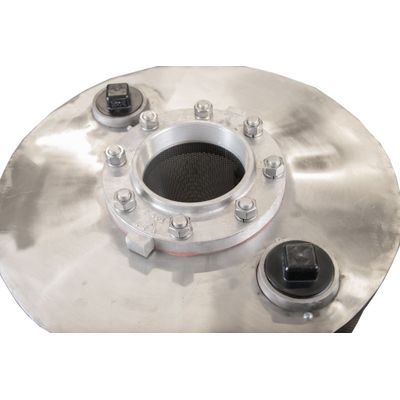

Simple - Model HRF-7 -Hi-Flow Radial Filter - Holds 7 Cubic Feet of Media
The Hi-Flow Radial Filter (HRF-7) is an activated carbon radial molecular air scrubber. It captures VOCs and particulate matter in a broad range of environments. It has a small footprint with a diameter of just 24". It can handle up to 2,800 CFM (when recirculating). The HRF is made of 16-gauge steel and is available in stainless steel. It can be ducted into existing HVAC systems or be used stand-alone with a power blower. The HRF-7 holds seven cubic feet of activated carbon.
The units come complete with Norit Darco’s H2S activated carbon. It is specifically developed for removing hydrogen sulfide (H2S) from air streams and eliminating “sewage odors.” It is produced by steam activation of a unique raw material to provide increased pore volume for adsorption of hydrogen sulfide and mercaptan odors.
These filters are offered with an optional power blower that has a standard voltage in one-phase (110/220/1/60), but units are also available in three-phase (208-230/460V/3/60).
