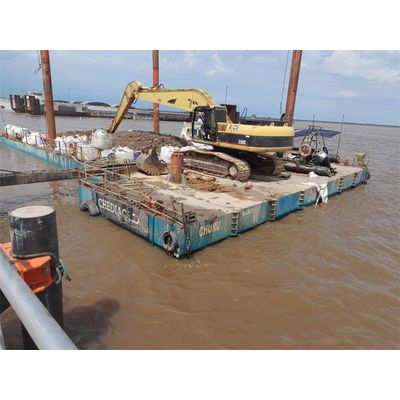

HIDModel JP500 -HID Designed and Manufactured a Multi-purpose Barge for a Uruguayan Customer

SHARE
With our 36 years of rich design and manufacturing experience, HID provided a multi-purpose platform for the Uruguayan customer Chediack. After completing a three-year bridge construction project, the platform was successfully transferred to another engineering site for drilling work in a wide river. HID has extensive experience in designing and manufacturing barges and pontoons for various purposes. In this project, HID designed a modular barge for the customer that can be easily transported to different construction sites. The modular design not only improves the flexibility of the barge, meets the needs of different projects, but also saves operating costs for customers.
Most popular related searches

Main parameters of the barge

Overall dimensions: 28122m

Engine power: 50kW

Generator: 12kW

Spud length: 27m

Spud diameter: 530mm

Loading capacity: 180t

Control system: hydraulic system

Anchor: 4*200kg

Electric winch: 4 sets Our customer
