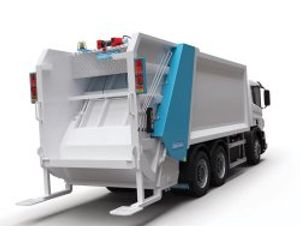

HidroMak - Rear Loading Hydraulic Waste Compactor
Rear Loaded Refuse Packer manufacturing is our core business. As a part of Faun Ecotech, we have 4-30 m3 body and 1- 5m3 rear gate capacity. Our HidroMak Standard Rear Loader offers reliable performance, low maintenance and innovative features for every country. We change our design to your country condition. Hidro-Mak also design own container lifting device for your Metal (400lt / 800lt / 1100lt ) and Plastic Containers.
High Rear Refuse Collection Rear Gate Compacting Ratio
Hidro-Mak changes technical, mechanical and Hydraulic component for each truck chassis capacity. As a result of this, our Refuse Collector has high compaction rate.

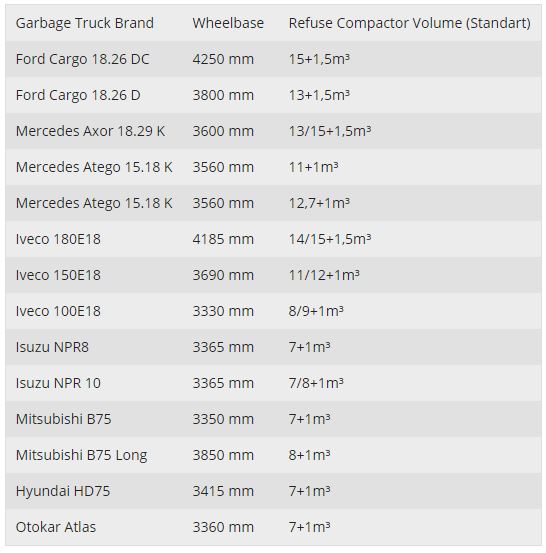

Fully Compatible to Truck Chasis
Every Truck Chasis and also wheelbase is important for Hidro-Mak engineers. truck Chasis, chassis supports, and gravity center of trucks takes acount to calculation and manufacturing.
Hidro-Mak has approved by Truck Chassis Companies.
Hidro-Mak has approved by MErcedes Benz (Daimler), Ford Otosan, Otokar, MAN, Mitsubishi, Isuzu.
Refuse Body Bin Lifter
Hidro-Mak has a own container lifting device for many type of refuse bin. Please contact with our sales department for right choice.
- Plastik Konteyner Kaldırma Sistemi
- Hardox
- En 1501
- Devirmeli Sistem Konteyner Kaldırma
- İnteligent System
- Crane for Under Ground Container
- Hidro Mak can adapt any Under Ground Bin to your rear loaders. We have a special web page on HidroMak web sites.http://www.hidromak.com/en/pg/product/product-group/2/underground-containers-garbage-body. We have also manufacturing our crane for rear loaders or you can chose the Hiab, Fassi and Palfinger crane .
- Arka Kapak Altı ilave su Tankı
- Elektrikli Sistem
- Çift Kollu Kaldırıcı sistem
- HidroMotorlu Konteyner Kaldırma
- Arka Perde sistemi
- Araç Takip sistemi
- Tartım Sistemleri
Mekanik Özellikler
- Kasa Hacmi: 6 – 32 m³
- Arka Hazne Hacmi: 0.8 – 2 m³
- Taban Sacı: 3 – 5 mm ST-52 (S355J2) veya muadili
- Yan Saclar: 3 – 5 mm ST-52 (S355J2) veya muadili
- Konteyner Kaldırma Sistemi: 120 / 240 lt Plastik Kova, 0,4 / 0,8 / 1,1 m³ Konteyner tertibatlarından biri (DIN 30700 göre)
- Yardımcı Şasi: 5 – 6 mm (takviyeli) U Profil
- Yükleme Yüksekliği: 1000 – 1400 mm
- Atık Su Tankı: 100 – 150 lt (Opsiyonel)
- Kollu Kaldırıcı Sistemi: Opsiyonel (3-5 m³ konteyner için)
- Hidromotorlu - halatlı sistem: Opsiyonel (3-5 m³ konteyner için)
- Boya: Astar + Sentetik
Hidrolik Özellikler
- Çalışma Şekli: Otomatik, Manuel, Otomatik+Manuel
- Hidrolik Silindir Sayısı: 9 Adet (Konteyner kaldırma tertibatına göre değişmektedir.)
- Sıkıştırma Oranı: 5:1 / 6:1 (evsel atıklar için)
- Hidrolik Pompa: 36 – 90 cm³/d (cm³/rev)– maks. 1500 d/d (rpm)
- Çalışma Basıncı: 170 – 190 bar
- Yağ Tankı: 80 – 240 lt
- P.T.O.: 750 d/d (rpm) – 1500 d/d (rpm)
- Çalışma Zamanı: 20 – 35 sn (sec.)
