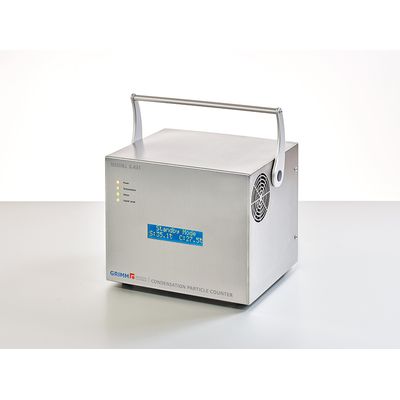

GRIMM - Model 5430 and 5431 -High Accuracy Stationary Particle Counter
The GRIMM 5430 is a high accuracy stationary particle counter for automotive emission measurements with improved response time (t10-t90 < 3 s) and an aerosol flow rate of 0.6 L/min. The instrument complies to the GPRE particle measurement program (PMP) for Euro 5 and 6 regulation 83. The new detection head enables single particle counting up to 50 000 particles /cm³ with a coincidence correction
Most popular related searches
particle counter
diesel particulate filter
aerosol flow
emissions monitoring
flow control
nanoparticle monitoring
particulate filter
particle monitoring
engine emissions
aerosol monitoring
- compact and rugged counter for automotive emission measurements
- aerosol flow rate = 0.6 L/min (with external pump)
- single particle counting up to 50 000 p/cm³
- coincidence correction
- linearity R² ≥ 0.98 for 1-23 000 p/cm³
- improved response time with t10-t90 < 3 seconds
- counting efficiency within 50 ± 12% at 23nm and ≥ 90% at 41nm
- anti-spill saturator design
- operates with air and inert gases
- continuous removal of condensate
- comprehensive self-test for highest reliability
- engine emissions for Euro 5 and 6 certifications
- testing of Diesel particulate filter
- particle counter in dilution systems
- high resolution concentration time series in driving cycles
- working fluid : n-butanol (n-butyl alcohol)
- concentration range : 0 – 23 000 p/cm³ single particle counting
- coincidence correction : < 10%
- concentration linearity : R² ≥ 0.98
- concentration accuracy : < 10%
- rise time t10 - t90 : < 3 s
- counting efficiency at 23 nm : 50 ± 12%, independent of altitude above sea level
- counting efficiency at 41 nm : ≥ 90%, independent of altitude above sea level
- false background counts : < 0.001 p/cm³
- readability : 0.1 p/cm³
- internal pump : no
- flow rate sample air : 0.6 L/min
- flow control : volumetric flow through temperature stabilized critical orifice
- ambient temperature : 10 to 40°C (50 to 104°F)
- ambient humidity : 0 to 95% RH, non-condensing
- absolute pressure range : 600 - 1050 mbar
- power supply : 85 - 264 VAC, 47 - 440 Hz
- power consumption : 80 - 130 W
- interfaces : Bluetooth, RS-232, USB (type B, type A), flashdrive
- dimensions (h x w x d) : 22.6 x 25.4 x 22.3 cm (8.9 x 10.0 x 8.8 in)
- weight : 8.9 kg (19.6 lbs)
