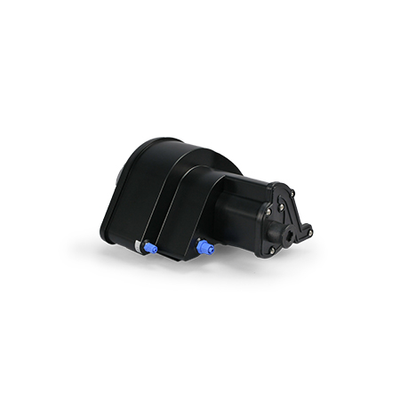

Dabeco - Model DTUL100 -High Accuracy Turbidity Probe for Tap Water
The low-range turbidity sensor guides the parallel light emitted by the light source downwards nto the water sample in the sensor. The light is scattered by the suspended particles in the water sample, and the scattered light at 90 degrees to the incident angle is received by the silicon photovoltaic cell receiver immersed in the water sample. By calculating the relationship between the 90-degree scattered light and the incident beam, the turbidity value of the water sample is obtained.
It is widely used in the online monitoring of turbidity in front of and after the filter, finished water in the water plant, direct drinking water system, and the online monitoring of turbidity in various industrial production circulating cooling water, filtered water, and reclaimed water reuse and other links.
- A continuous reading scattering turbidimeter, specifically designed for low-range turbidity detection
- Data is stable and has good reproducibility
- Simple to clean and maintain
- Modbus RTU digital communication, anti-interference, and easy to configure
- Range:0.001-100 NTU
- Display accuracy:±2% or ±0.015 NTU of the reading,Take the larger value, @ 0.001-40 NTU; ±5% of the degree @40-100 NTU
- Resolution:0.01-0.1NTU depending on the different ranges
- Repeatability: ±2% F.S
- Flow rate:300ml/min≤X≤700ml/min
- Operating temperature: 0-45C (no condensation)
- Dimensions:310mm210mm410mm (length * width * height)
- Main materials: Body:ABS +SUS316L Seal: Butadiene acrylonitrile rubber Cable:PVC
- Waterproof grade: IP66/NEMA4
- Power supply voltage: Wide voltage range 9-36VDC,recommended 12VDC
- Power consumption: 3.5W for low-power LED version sensors, 15W for tungsten lamp
- version sensors
- Cable length: 3m standard cable, which can be extended.
