Zhichuan - Model ZCT-CX09 -High Accuracy Wireless Digital Inclinometer with LCD Screen and Strong Magnetic Mounting
ZCT-CX09 is a high accuracy wireless digital inclinometer with LCD screen and strong magnetic mounting, developed and produced by Shanghai Zhichuan Electronic Technology Co., Ltd. It supports dual-axis, ±90° (recommended range ±60°) and single-axis 360° measurement. When dual-axis measurement is enabled, both Angle-measurement mode in degrees (°) and the Height-Difference-Measurement mode in millimeters/meters (mm/m) can be selected. When single axis measurement is enabled, 360°counterclockwise, 360°clockwise and ±180°measurement direction are supported; customized relative zero point is supported.

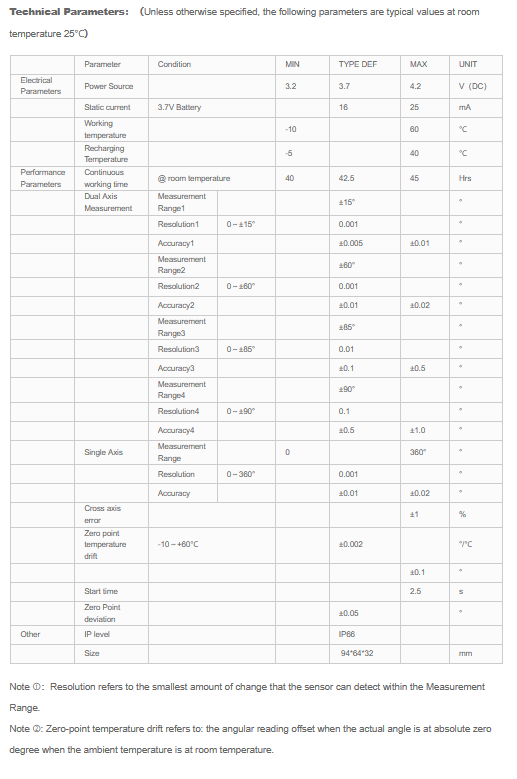

- Product Model: ZCT-CX09
- Measuring Range: ±90 °
- Output: Digital Output
- Measuring Axis: Dual Axis
- Accuracy: 0.005°-0.01°
- Application: Machinery
- IP Degree: IP66
- Temperature: -40℃ ~ +85℃
- Shell Size: 94 * 64 * 32 mm
When dual-axis measurement is enabled, both Angle-measurement mode in degrees (°) and the Height-Difference-Measurement mode in millimeters/meters (mm/m) can be selected.
When single axis measurement is enabled, 360°counterclockwise, 360°clockwise and ±180°measurement direction are supported; customized relative zero point is supported.
- Angle measurement;
- Security control, monitoring, alarm;
- Alignment control, warping control;
- Tilt position recorder and so on.
- Results displayed OLED in real time.
- Portable design; multiple functions.
- Built-in rechargeable Li-ion battery.
- Bluetooth 5.0 BLE，customizable protocols.
- Reserve the LoRa module interface to retain the scalability of long-distance communication.
- Leveling of building construction；
- Machinery leveling；
- Angle detection of various equipment；
- Geological tilt measurement
- Building tilt measurement
