QYTeco - Model 13.3inch 29mm1080P -High and Low Beams 512Hz Sonde and Self Leveling Sewer Inspection Camera

• Kind: Sewer Camera
• Sensor Size: 1/3``COMS
• Application: Sewer , Pipe Inspection , Water Mains
• Feature: High Beam and Low Beams , Self Leveling , 512HZ Sonde
• Horizontal Resolution:1920*1080
• Camera head: 29mm 304 stainless steel

One control box is compatible with fiberglass 6.8mm(0.26") stiff push rod in diameter and 170"(50M) in length,having the ability to navigate turns, ideal for inspecting 3" to 6" (80 mm to 150mm) main lateral and the humanized design makes the camera easy to clean.

• Inspect lines from 3”to 6”(80mm-150mm)
• 29mm(1.14”)1080P detachable double waterproof camera head
• Optional 512Hz transmitter and self-leveling built-in to all camera heads, field-tested tough camera heads
• 13.3inch color monitor with 1080P resolution
• All-digital recording by external storage SD Card/ USB driver to store still pictures or videos.
• 50M(1700feet) longest, 6.8mm(0.26``) push rod 40/30/20M(66-135ft) optional
• 29mm camera head also can with 5.3mmfiberglass push rod 50m(longest)
• Solid yet lightweight and multifunctional frames
• Durable & field replaceable push rod resists kinking
• Powered with either wall charger or build-in battery

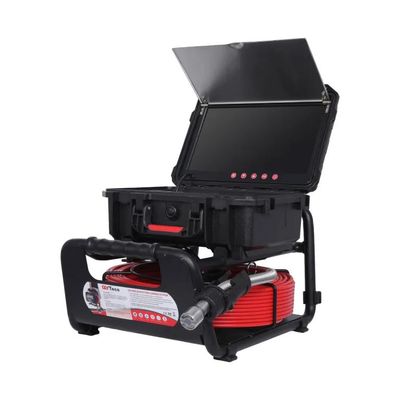

This HD pipe inspection camera system is with compact, rugged, portable and humanized design for efficient operation  in sewer, drain, duct ,chimney, milk pipes, water mains,central air conditioning, heating system, pipe sventilation systems plumbing related sites and where a pipe inspection camera is required.

It consists of three main parts:

1. Control box with 13.3inch big IPS DVR and wireless keyboard for text input;
2. Metal frame with automatic padlock;
3. Cable reel with meter counter equipment, fiberglass push rod and  29mm 1080P Camera(sapphire lens).
4. It is suitable for pipes with inner diameter at 80mm-150mm. Ability to go through 90° bends in pipe.

• Camera head: Camera head:29mm(1.14”) camera
• Lighting Built-in:12xLED Low Beam (White)    2xLights High Beam (White)
• Resolution: 1920RGBx1080
• Aperture / Field of View:  120°
• Spring:field serviceable
• Auto-flip imagery ensures upright visual
• The self-leveling camera head keeps the image upright
• Functions: Optional Self-leveling or 512hz Sonde/Transmitter
