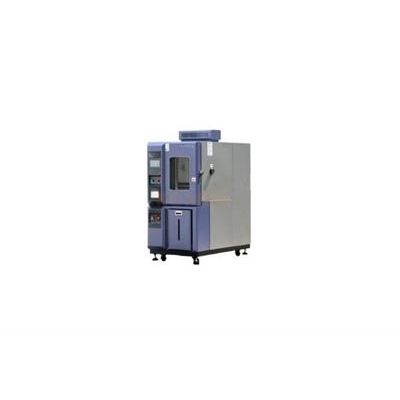

KOMEG - High and Low Temperature Test Chamber
High and low temperature test chamber is simulation environmental temperature to test products in extreme temperature conditions such as high temperature, low temperature for reliability test. It’s wildly used in the parts and materials such as electronic and electrician, automobile and motorcycle, aerospace, military, institutions, scientific research and other industries.
- Five sizes available starting at 36L
- -75°C ~ +180°C models available
- 7” colour touch screen programmable controller
- Heavy duty castors to allow easy movement
- Large viewing window with fluorescent light
- 50mm diameter port holes
- Refrigeration system uses world known reliable components
KOMEG Technology has been manufacturing environmental test equipment since 1990 and specialises in climatic test chambers, thermal shock test chambers, walk-in chambers, ESS chamber and other equipment.
Komeg has been a specialist in environmental tests for almost 30 years and designs and manufactures chambers that can simulate extreme and reproducible environments. Present in sectors as diverse as automotive, aeronautics, space, defence and telecommunications, Komeg helps guarantee the best level of performance, reliability and safety for your products.
The KMT series range is a -75°C to +180°C range of environmental chambers available in various sizes from 36L,64L,150L,225L,408L,800L,1000L up to 2000L. This model features a large 7” full colour LCD touch screen controller capable of up to 269 programs or 32000 cycle steps. The programmable controller is easy to use and clear to read making operation simple and quick.
The refrigeration system uses world known components and combines reliability with energy efficiency. The compressor is Tecumseh or Copeland and valves are from Danfoss. The refrigerant is the environmentally friendly R404a. All electrical components meet international Standards. Construction is from powder coated steel and a high quality 304 stainless steel liner.
The door features a large double glazed viewing window with a fluorescent light to allow the operator to easily see inside the chamber and inspect samples without having to open the door. Both sides of the chamber have a 50mm diameter port hole that can be sealed when not in use.
Customized made also available.
Performance characteristics of low temperature test chamber：
1. 7 inch touch screen controller.
- Precise control. Easy operation.
- Communication system: USB, RS-232, RS485, LAN
- English and Russia language available
2. Customized chamber size is available
- Prefect designed chamber processed by CNC machine
- Internal material adopts stainless steel 304
3. Multiple safety protection procedure
Compressor overload protection, compressor overpressure protection, compressor motor overheat protection, control system over temperature protection, circulation fan overload protection and so on
4. Modular design
For the chamber, it divide into several function modular, such as refrigerant system modular, electrical system modular, insulation modular and so on. It improves the reliability of the system, and easy debugging and maintenance.
