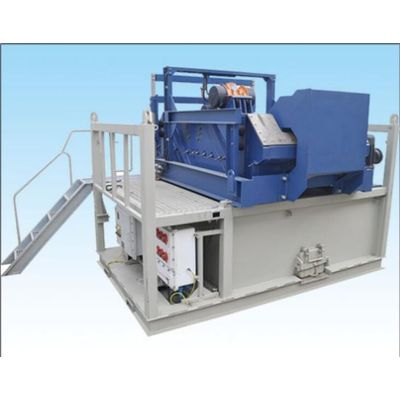

FD Petrol - Model HG320 -High Capacity Cuttings Dryer Shaker
FD Petrol HG320 High Capacity cuttings dryer shaker,single deck,utilizing vibration system to produce an adjustable High G force up to 8.5, tensioning device screens to be 80 mesh or finer installed on a catch tank to collect recovery drilling fluids from cuttings,pumps and hoses to transfer the drilling fluids back to rig drilling fluids system.Bigger area screens proven to be effective in solids/liquid separation.VFD control panel make your two version electric(50HZ/60HZ) interchangeable freely.
Most popular related searches
drilling fluid
drilling waste management
drill cuttings
tensioner pump
VFD control
variable frequency drive controller
shaker screen
drilling waste
waste management
drilling rig
- Model: HG320
- Vibration Mode: Linear Motion
- Vibration Motor: 2*1.9KW USA Martin Motor
- Vibration Strength: 8.5G Adjustable
- Screen Dimension: 2850mm (4 Panel 630x1250mm )
- Screen Area: 3.2?
- Screen Size: API40/API80
- Treating Capacity: 850-900GPM
- Deck Adjustament: -1°~5°
- Dimension: 2950x1720x1650mm
- Control Panel: Explosion Proof :ExdII BT4
- Catch Tank: 2300*1800*900mm
- Linear motion, the drill cuttings can move on the screen surface regularly and smoothly.
- High G force reaches to 8.5G,better cuttings dryer performance
- 4 Panel bigger shaker screens ,higher treating capacity
- AWD-1°~+5° adapt to different drilling conditions and mud property
- VFD control panel, two version electric (50HZ/60HZ) interchangeable freely.
