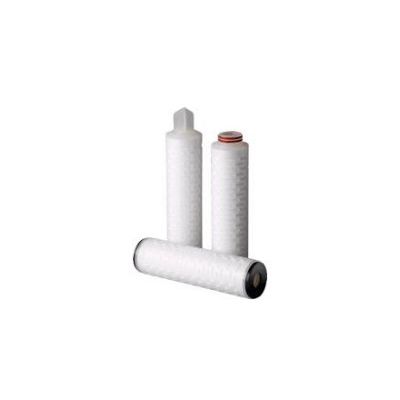

- Model Halar - High Compatibility Pleated Filter

From

0

SupaPore Halar filters are constructed using Halar fluoropolymer media offering a unique combination of mechanical properties and thermal and chemical resistance. These filters are specifically designed to offer excellent compatibility and effective removal of particulates from solvents, solvent based liquids and ozonated water.

SupaPore Halar filters offer greater compatibility than polypropylene media filters at a cost that is typically lower than PTFE membrane cartridges. The advanced pleated meltblown media used in these filters provides both high flow rates and long life. They are also available with nylon 6 cage, core and end-caps to widen the range of applications SupaPore Halar filters can be used in.

Industries and Applications
The availability of high purity, particulate free solvents is also important to many industries including manufacturers of Active Pharmaceutical Ingredients (API), fine chemicals and micro-electronics products. Typical applications include:-

  • API / Fine Chemical manufacturing
    • Removal of fine particulates from product streams
    • Clarification of chemicals used for product synthesis
    • Filtration of solvents used for purification of crystallised compounds
  • Microelectronics industry
    • Particle removal from chemicals and solvents used for microchip production
  • Water treatment

The use of ozone to control bioburden in purified water systems is increasing and ozonated water can damage standard polypropylene cartridges. SupaPore Halar cartridges are excellent for this application, exhibiting enhanced compatibility for water dosed with ozone. They are also used as vent filters to protect water tanks from particulate contamination.

Compatibility
SupaPore Halar filters offer improved compatibility with a wide range of chemicals and solvents including:-

  • Acetone
  • Acetonitrile
  • Acetic acid (100%)
  • Diethyl Ether
  • DMAC
  • DMF
  • DMSO
  • Ethanol
  • Ethyl acetate
  • Hexane
  • Hydrochloric Acid
  • Methanol
  • MIBK
  • MTBE
  • n Heptane
  • Ozonated water
  • Sodium Hydroxide
  • THF
  • Toluene
  • Xylene

Amazon Filters manufactures a comprehensive range of PED and ATEX compliant filter housings for use with SupaPore Halar  cartridges. This range includes the industrial 50 and 60 Series housings and the hygienic 70 Series. We are also able to offer the ClearView housing containing a ‘window’ to allow on-line visual monitoring of the process. Please consult our Sales Office for further details on the full range.

  • Broad chemical compatibility with a range of solvents and chemicals at an attractive cost
  • Available with either polypropylene or nylon hardware
  • High flow rates, low pressure drops, long life and low extractables
  • Manufactured under strict control with batch number identification, giving full traceability on all components
  • Materials USP Class VI Plastics tested and meet US FDA Title 21 requirements
  • Full product validation guide available

Dimensions
Outside Diameter: 69mm
Typical Surface Area:0.54 m2 (Per 10')
Length: See ordering guide

Sterilisation and Sanitisation
Steam or Autoclave: 121°C for 15 mins (40 cycles)
Hot Water: 90°C for 30 mins (0.2 bar Δp max)

Maximum Operating Conditions
Temperature: 80°C

Recommended Maximum Differential Pressure:

  • Forward Flow: 4.0 Bar @ 20°C
  • Reverse Flow 3.5 Bar @ 20°C

Materials of Construction
Filter Media: Halar (ECTFE)
Cage, Core & End Caps: P - Polypropylene (PP) or N - Nylon (N)

Product validation guide available on request. All SUPAPORE HALAR cartridges are manufactured under strict control with batch number identification, giving full traceability on all components.

  • Pharmaceuticals: API manufacturing
  • Fine Chemicals: Filtration of Acids, Bases and Solvents
  • Electronics: High purity water, Photo resists. Acids, Etch solutions
  • Water Treatment: Ozonated water
