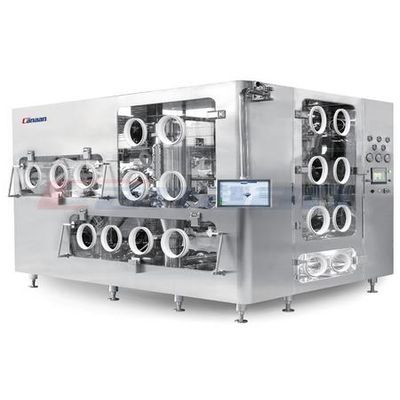

Canaan - High Containment Granulation Line Isolator

SHARE

Production of medicine with highly active ingredients card iovascu lar and cerebrovascu lar med ici ne/cytotoxic medicine/ anticancer medicine.Widely applied in Medical/ Nuclear/Electronics/Chemical fields.

Most popular related searches
granulator
isolation valve
granulator mill
containment technology
washing system
screening system
granulation machine
electronic weighing scale
cytotoxic
weighing scale
  • Accord with GMP/CGMP/FDA
  • Integrate High Shear Mixer, Fluid-bed Granulator, Mill
  • Machine, Mixer and Isolator
  • Containment technology: RTP valve/Isolator/ PUSH-PUSH/
  • BIBO/AB valve/Automatic docking
  • PLC control system/Touch screen/Techpro M system
  • CIP washing system
  • Material enters into isolator through RTP valve
  • Material weighed by electronic scale, etc
  • Material discharged into High Shear Mixer to start granulation
  • Wet granules vacuum conveyed to Fluid-bed Granulator after finishing wet milling
  • Material discharged through turnplate after drying, then go through dry cone mill
  • Vacuum conveyed to buffer tank and charged to pharma bin through AB valve
  • Pharma bin finish AB valve docking through automatic upgrading system and complete discharging
  • Finished granules get out of isolator through AB valve
