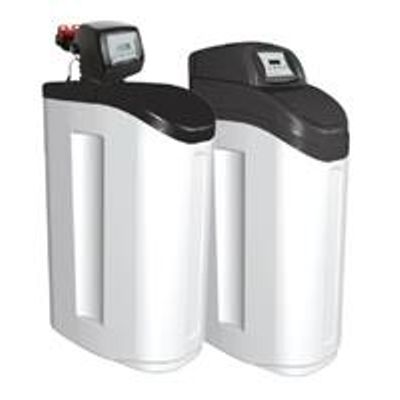

Canature - Model CS1L / CS1H -High Cover Styles Water Softeners
Exclusive NSF Certified electronic control valve with reliable piston, seal and spacer technology. Core components made in house, better quality control, 100% leaking test on production line. Time saving quick connect fittings on bypass, drain and brine line. Space saving bypass with integrated turbine meter, include bypass tool, easy to operate it. Closed bottom brine well reduced intrusion of unwanted impurities. Brine valve with safety float and provide extra overflow protection. “No Touch” information display rotates key info like last regeneration date, volume remaining and etc. 48 hour self charging battery back-up. Complete installation kit including bypass, plumbing fittings & drain tubing. Quick connect fittings for simple installation.
- Color Black
- Certification NSF, RoHS, CE
- MOQ 10pcs
- Packing 1pc/ctn
- Optional Control Valves BNT, FLECK, CLACK, GE VALVES
- Introduction Canature designs,tools and manufactures
- Model CS1L-1035(Low Cover)
- Hardness Removal(6 lb/cf Salt Dosage) 21731 Grain / 1408 Gram
- Resin Quantity 25 L / 0.88 CF
- Salt Used - Per Regeneration(6 lb/cf Salt Dosage) 5.30 LB / 2.4 KG
- Water Used - Regeneration 127 L / 33 GAL
- Tank Size 10x35
- Salt Storage Capacity 81 KG / 178 LB
- Service Flow Rate @ (Valve Only / 1 Bar Pressure Drop) 39 L/M / 10.3 GPM
- Recommended Service Flow Rate(Softener)
- Back Wash Flow Rate 9 L/M / 2.4 GPM
- Regeneration Type Down Flow
- Regeneration Mode Calendar Clcok/Meter Immediate/Meter Delayed/Meter Override
- Resin Type Extremely High Capacity Ion Exchange Resin
- Integrated Meter in Bypass Yes
- Water Supply Municipal
- Water Temperature 3～38℃
- Water Pressure 0.14～0.86 MPa
- Power Supply Input 110V-120V / 220-240V AC 50/60Hz
- Product Dimension(L×W×H) 627×350×1090(mm)
- Carton Dimension(L×W×H) 640×365×1170(mm)
- Shipping Weight 51 Kg
