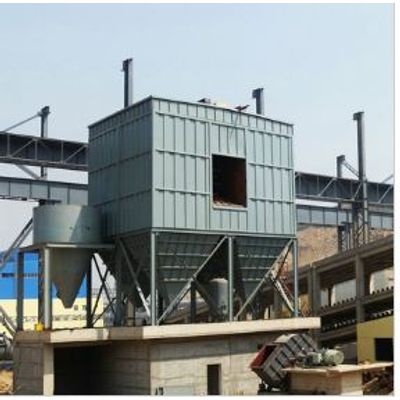

Taizhe - Model PPC Type -High Efficiency Pulse Jet Bag Filter - Industrial Dust Collector

Bag filter dust collector is widely used in cement, mineral processing, electronics, chemicals, food processing, metallurgy, casting, carbon materials, machining, timber building materials and other industries.

Working principle of industrial dust collector: Dust gas enters the middle and lower enclosures through the air inlet of the precipitator. The

dust and gas are separated through the filter of the filter bag. Dust is adsorbed on the surface of the filter bag, and clean air is discharged from the air outlet through the filter bag. Increasing the amount of dust deposited on the surface of the filter bag over time is increasing. According to the procedure set by the pulse blower, the pulse blow valve triggers on in sequence. Compressed air inside the air bag is instantly blown out from each hole of the injection pipe and sprayed into the corresponding filter bag via the venturi. The dust adsorbed on the surface of the filter bag then falls off into the hopper and is discharged through the discharge valve Directly into the warehouse.

1. High efficiency≥99.5%
2. Low emission concentration ≤20um, but also ≤10um is possible after filtering according to practical situation
3. Low leakage rate
4. Material—carbon steel or stainless steel.
5. Simple Structure, easy maintenance
6. Suitable bags and bag cages fitted according to dust properties. Glass Fiber, needle felt, PTFE, p84., etc
7. The overhaul and bag replacement can be carried out for separate chamber under the condition that system blower and system run normally.
8. The whole set of equipment is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm
9. It is not sensitive to the characteristics of the dust, and it is not affected by dust and resistance.
