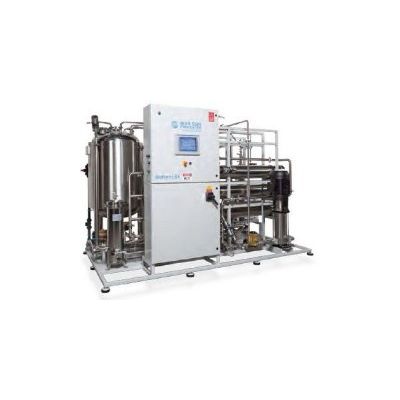

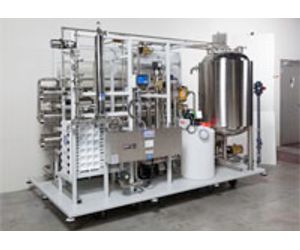

BioPure - Model LSX -High Efficiency USP High Purity Water System
Mar Cor Purification offers the next generation USP high purity water system, the BioPure LSX. The base system is a compact centralized single pass hot water sanitizable RO-EDI system designed to produce USP purified water grade. The BioPure LSX system has been designed to minimize water and energy consumption, while the automated heat sanitization process allows for greater bacterial control.
Most popular related searches
high-purity water system
high-purity water
water purification
stainless steel tube
differential pressure monitoring
pharmaceutical water system
variable frequency drive
reverse osmosis and electrodeionization
water purifier
life science
- Single pass RO-EDI design
- Single skid, space saving design
- Automatic Hot Water sanitization programs
- All pharmaceutical grade 316L stainless steel tubing and
- All welds are visually inspected
- Tri-clamp connections aid in sanitary design
- High efficiency motors with variable frequency drive
- Built in electric heater
- Sanitization Break Tank (100 US gallons)
- Fast installation and start-up
- Modulating valves allow user to dial in required flowrates within production range
- Self-adjusting reject flows allow for water savings in high recovery mode
- Differential pressure monitoring across filters and RO membranes
- Allen-Bradley CompactLogix PLC

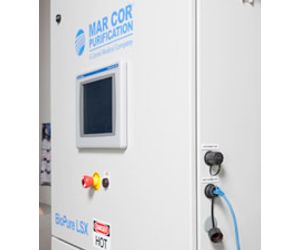

- NEMA 4/12 Main Control Panel
- Large 25.4 cm (10”) Allen-Bradley HMI colour touch screen for easy operation
- USB ports for data logging & optional printer hook up
- Ethernet compatible for remote monitoring and troubleshooting
- Control panel powers up and interlocks pretreatment via quick connects
- USP Purified Water
- Water for Injection (WFI) Water
- Highly Purified Grade Water for Rinsing
- Feed to Multi-Effect Still
- Cosmetics Process Water
- Medical Device Manufacturing
