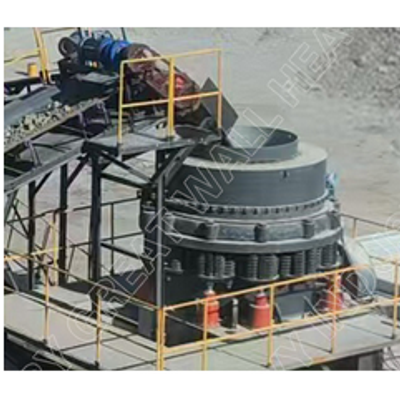

Great Wall - Model CZS -High-Efficient Cone Crusher
CZS High-efficient cone crusher is a high-performance type optimized and improved on the basis of PY series spring cone crusher. It is widely used in fields of mining, building material, metallurgy, etc. It is suitable for medium crushing and fine crushing on basalt, river stone, granite, quartz, metal ore, etc with high hardness materials.
- The combination of optimized cavity design, reasonable running speed and stroke , causes its bigger production capacity.
- Hydraulic cleaning system could clean the crushing cavity fast, this reduces downtime.
- Based on lamination crushing principle, there are more cubic end products, particle size is even, gradation is also reasonable.
- System of multi-point control of independent thin oil lubrication can ensure the double protection of bearing lubrication, ensure the safe operation of the equipment.
- Over-iron protection device and automatic control system can achieve automatic protection.
When it works, electric motor drives eccentric bushing via pulley, v-belt, transmission shaft and bevel gear. The main shaft would do pendulum movement under force of eccentric shaft, so as to mantle would be close to concave and far from concave. Materials would be continuously extruded, bended and impacted in the annular crushing cavity formed by mantle and concave, crushed materials would be discharged from bottom discharge mouth.
