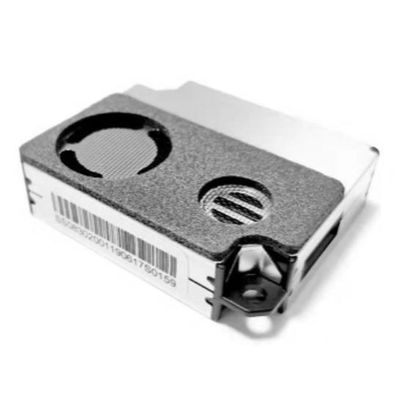

Pulse Sensor - Model PM10-PS5308-M_B -High Eft Indoor Laser Dust Sensor

High Eft Indoor Pm10 Laser Dust Sensor

• Model Number: PS5308-M_B
• Type: Air quality sensor
• Brand Name: Pulse sensor
• Usage: Intelligence appliance, air quality monitoring, Environmental Monitoring
• Theory: Principle of laser scattering detection
• Output: UART TTL, UART TTL
• Measuring range: 0-1000 ug/m3
• Power supply: DC 5±0.5V
• Features: High Precision
• Certificate: ROHS, REACH, ISO9001
• Response time: <5s
• Accuracy: ≥100 ug/ m3:±10%
• Temperature range: -30? - 70?
• Size: 48mm*40mm*13.5mm
• Packaging & Delivery: 70 PCS/layer, 6 layers per box, 420 PCS in total

• type: PM2.5
• range: 0~1000 ug/ m³
• Consistency: ≥100 ug/ m³:±10%;
• Accuracy: ≥100 ug/ m³:±10%;
• data interface: UART TTL, 9600 bps
• power supply: DC 5±0.5V, ripple<50mv
• working environment: Temperature: -15? ~ 60? ;Humidity: 0 ~ 90% RH(no condensation)
• Storage Conditions: Temperature: -30? ~ 70? ;Humidity: 0 ~ 90% RH(no condensation)
• weight: 26g
• size: 48mm*37mm*12mm
• MTTF: ≥30000H
