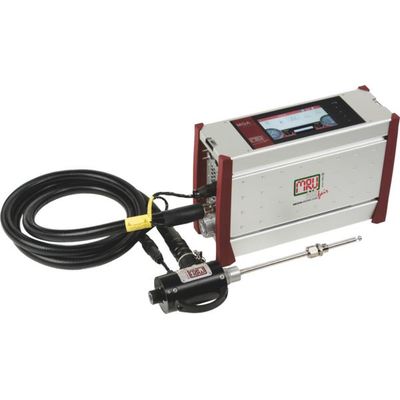

MRU - Model MGAprime H2 -High End Flue Gas Emission Analyser

FromMRU Messgerate fur Rauchgase und Umweltschutz GmbH

SHARE

High end flue gas emission analyser for H2-analysis at industrial sites. Precise and very stable offset measuring technique by means of non dispersive infrared (NDIR) technique, for enhanced long time measurements. Up to 8 gas NDIR measurement: CO/CO2/C3H8/CH4/SO2/NO/NO2/N2O/H2 and oxygen with O2-PM (paramagnetic cell). Remote control via smartphone or tablet using VCN server via LAN/WLAN (no remote control via MRU4u app). Wireless data transfer via Bluetooth dongle or WLAN dongle or via VNC server using LAN/WLAN.

Most popular related searches

flue gas analyzer

flue gas emissions

emissions analysis

emissions analyzer

flue gas analysis

NDIR hydrocarbons

sample gas pump

Integrated, efficient dual heat exchanger gas cooler (Peltier type) with dual automatic condensate draining pumps
Using single beam through sample cell for NDIR measurements
Automatic zeroing by means of 3-way solenoid valve, internal sample flow volume measurement
Strong, regulated sample gas pump and easy replaceable, effective PTFE filter
Internal sample flow monitoring with display and alarm
Zero gas (ambient air) air inlet nozzle and passive VENT outlet of sample gas (for use inside laboratories)
O2 referencing (normalisation) to user settable value
Large fuel type list incl. self choose fuels with user definable parameters
Complete combustion calculation using country specific fuel type list
Automatic internal test and control of soft- and hardware functions
Automatic measurement incl. data logging function
7” high-resolution (800x480 pixel) TFT colour display with swipe and touch technique, with LINUX operating system
Results stored in database - possibility to view entire measurement session in graphical form, create measurement reports, export data to CSV files, and more
PC communication via LAN - Ethernet
Data transfer to PC over LAN Ethernet (RJ45 socket) or USB
Analog outputs (8-channels), analog inputs (4-channels)
Modern and robust design, Aluminium enclosure with rubber molded impact protection for use in harsh industrial environment

Glas flow velocity and mass calculation by using a Pitot tube

H2S-measurement

0...500, overload up to 2.000 ppm

Range extension CO (NDIR) to 100.000 ppm

Measuring range

H2: 0...1.000ppm, Überlast bis 2.000ppm 0...10.000ppm, overload 20.000ppm
O2: (paramagnetic) 0 ... 25,00 %
CO2: (NDIR) 0 ... 50 %
CO: (NDIR) 0...175 / 10.000 ppm
HC (CH4): (NDIR) 0 ... 500 / 10.000 ppm
HC (C3H8): (NDIR) 0 ... 200 / 5.000 ppm
NO: (NDIR) 0 ... 200 / 4.000 ppm
NO2: (NDIR) 0 ... 150* / 1.000 ppm *only possible with optional acid dosage box
SO2: (NDIR) 0 ... 150* / 4.000 ppm *only possible with optional acid dosage box
N2O: (NDIR) 0 ... 100 / 500 ppm
Fluegas temperature: 800°C, optionally 1.700°C
Ambient air temperature: 0°C ... 100 °C
Differential pressure: -120 ... +120 hPa
Flow Velocity: 3 ... 100 m/s

Dimensions and other data

Operating system: LINUX
Display: 7“ TFT (800 x 480 px) colour display, backlit, with touch pad
Data storage: internal 10.000 data sets, external USB stick
Interfaces: Ethernet, Bluetooth, WLAN, RS485
Printer: external thermal printer only
Battery capacity: Li-Ion , 96 W, for approx. 1 hour „stand-by“
Operating temperature: +5 ... +50 °C ; RH up to 95 % non condensing
Storage temperature: -20 ... +50 °C
Power supply: 86 ... 265 Vac / 47 ... 63 Hz / 105 W (analyser only)
Protection: IP20 (or IP42 inside transport bag)
Dimensions: 430 x 290 x 150 mm (w x H x D)
Weight: approx. 7,5 kg for minimal configuration
