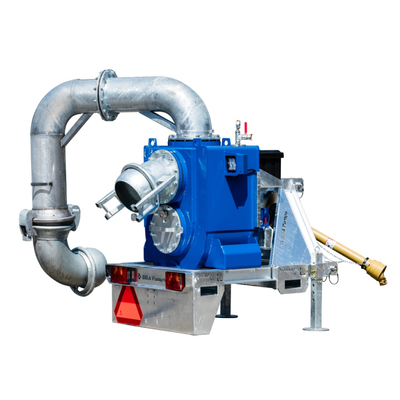

BBA Pumps - Model B300 T3WGT Tractor Driven -High Flow 12 Inch Self-Priming Emergency Pump
The B300 is a 12 inch self-priming emergency pump and designed for rapid response in times of critical high water situations. Unique to this B300 centrifugal pump is the tractor driven (PTO) combined with the special galvanized steel tractor frame. Almost all Dutch water boards have these flood control pumps on standby, ready to react quickly in case of heavy rainfall.
- Pump flow up to 1250 m³/h
- Maximum total head 15 mwc
- Solids handling up to 70 mm
- Discharge x Suction: 12" x 12"
- Max. flow: 1250 m³/h
- Max. head: 15 mwc
- Free passage: 70 mm
- Material: St. 37
- Max. speed: 1000 rpm
- Frame: 3 point suspension frame
- Dry weight: 1320 kg
- Required power: 55 kW
B self-priming centrifugal pump
The B range of pumps has been designed with a clear focus on reliability, efficiency and durability, ranging from 1-1/2ʺ to 12ʺ. Featuring an open impeller configuration in combination with a changeable wear plate, facilitating servicing and minimising costs of spares. All B series pumps are fitted with a non return valve in the suction port, eliminating the need for a foot valve in suction line and allowing quick priming.
Design features
- Basic, reliable technology
- Large solids handling capacity
- Suitable for use with hot fluids
- Cooled shaft seal
- Extended life due to pump design
- Available with ATEX approval
Fields of application
- Flood protection
- Waste water management
- Emergency pump units
- Irrigation
- Agriculture
- Horticulture
Complete package designed & built by BBA Pumps
- Complete in-house design & production
- Over 60 years of experience in the market
- Extensive testing facility in-house
- Contemporary & functional design
- Durable & eco-friendly materials
- Custom builds available
After sales service & product support
- Single supplier for parts, spares & accessories
- Dedicated customer help-desk (24h service)
- Dedicated service department in-house
- Global parts distribution network
- Optional global on-site servicing
- Extensive training options available (technical & commercial), on-site or in-house
BBA centrifugal pump
- Model: B300 T3WGT
- Max. flow: 1200 m3/hour
- Max. head: 14 mwc
- Free passage: 70 mm
- Pump speed. 960 rpm
- Connections: 12ʺ IT coupling
BBA Frame
- Assembly: Fully galvanised suspension frame
- Additional: 4 jack stands
- Lighting: Lighting bar
- Toolbox: Optionally
Materials
- Pump casing: St.37
- Wear plate: GG20
- Impeller: GG20
- Shaft seal: Mechanical seal
- Seal faces: TC / TC / Viton
- Pump shaft: Steel C45 – 1.1191
- Gaskets: NBR / paper
