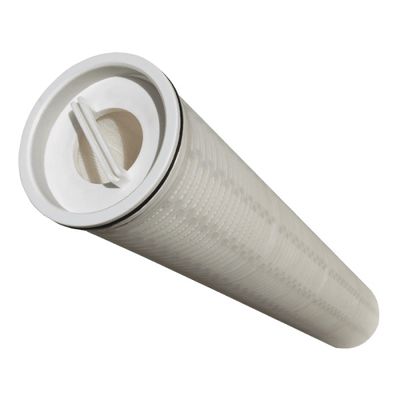

Fil-Trek - Model Ultra Flow Series -High Flow Cartridge Filter
High flow pleated filter cartridges offer excellent dirt loading capacity extending cartridge life, with minimal disposal and labour costs. Capable of high flow rates of up to 300 GPM per 60” element. External netting adds additional support and a built-in handle makes filter change out fast, easy and safe. Thermally bonded.
Most popular related searches
high flow cartridge filter
high flow filter cartridge
cartridge filter
filter cartridge
pleated filter cartridge
pleated filter
pleated cartridge
bag filter cartridge
bag filter
- 6″ OD, 3″ ID
- Absolute Rated
- Inside to Outside Flow
- Compatible with UFV and UFH Series housings
Materials of Construction
Media:
- Polypropylene
- NSF61 Polypropylene
- Polyester
- Microglass
- Cotton
- Cellulose
- Nylon
- Nomex
Outer Support:
- Polypropylene
- Polyester
- Nylon
- Steel
Core:
- Polypropylene
- Tinned Steel/Stainless Steel
End Caps:
- Polypropylene
- Microglass
- Nylon
- Steel
Available Sizes/Lengths
Outside Diameter:
- 6″ (15.2 cm)
Inside Diameter:
- 3″ (7.6 cm)
Lengths:
- 20″ (50.8 cm)
- 40″ (101.6 cm)
- 60″ (152.4 cm)
- 80″ (203.2 cm)
Temperature Limit
- Polypropylene -180°F (82°C)
- Polyester – 240°F (115.5°C)
- Microglass – 300°F (149°C)
- Cellulose – 300°F (149°C)
- Cotton – 300°F (149°C)
- Nylon – 340°F (171.1°C)
- Nomex – 400°F (204.4°C)
Maximum Differential Pressure
- 75 PSID (5.2 bar) @ 70°F (21°C)
- 30 PSID (2.0 bar) @ 176°F (80°C)
Recommended Change Out Pressure
35 PSID
Micron Ratings
0.5 – 100 micron
Filter Efficiency
Absolute 99.9%
