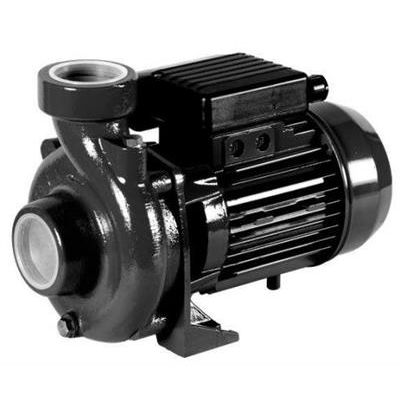

Soggia - Model SC -High Flow Centrifugal Pumps

SHARE

Single impeller centrifugal monoblock electropumps. The serie SCM performs with hight water capacity related to low pressions and medium/low power, Suited for use in industrial, civil and agricultural applications, heating systems and water supplier. It is recommended that these pumps are used to carry only chemically pure liquids, with temperatures not higher than 80°C.

Most popular related searches

surface electric pump

centrifugal pumping

centrifugal pump

industrial washing

centrifugal impeller

Max capacity: 1500 l/min (90 m3/h)
Max head: 3 meters
Rotation speed 2850 r.p.m.
Continuos service
Maximum suction height: 7 meters

Potable water
Home pressure increasing
Garden irrigation
Pumping clean water even on industrial machinery
Washing sistems

Monoblock horizontal axis pump
Pump body - Motor Bracket in cast iron G20
Shaft in Stainless steel AISI 416
Mech. Seal in ceramic/graphite
Brass impeller serie SCI - Cast iron impeller serie SC2-3-4

Electrical closed-type with external cooling fan ,
Protection class IP 44
Class of insulation F
Single-phase at 220-230 V - 50 Hz; fitted with a thermal protection to avoid damages to the motor.
Three-phase at 230/400 V- 50Hz; protection must be provided by user.
