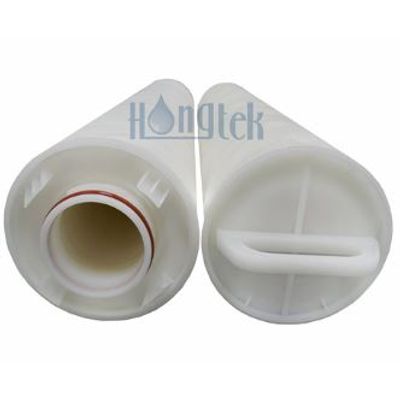

Hongtek - Model MP Series -High Flow Pleated Cartridges
MP Series High Flow Pleated Cartridges are designed for applications with large flow or contaminant removal requirements. The high quality is equal to 3M CUNO 700 & 740 Series high flow filter cartridge. The most outstanding characteristics of them are high flow capacity and high filtration efficiency. Outside to inside flow direction is the usual water flow pattern. The unique radial pleat design permits higher flow rates than standard 2.5 inch diameter filter elements, resulting in significantly saving labor force, time and space of water system.
MP Series High Flow Pleated Cartridges have high particle removal efficiency and strong contaminant holding capability. PP pleated high flow cartridges utilize polypropylene end caps, outer netting and inner hard core to protect the radial pleated structure integrity, providing consistent performance and good quality for effective particle retention.
- Filter Media Polypropylene
- Length 20"(508mm), 40"(1016mm), 60"(1524mm)
- Outside Diameter 6.5inch (165mm)
- Inside Diameter 3 inch (76.2mm)
- Filtration Rating 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 70μm
- Support/Drainage Polypropylene(PP)
- End Cap Material Glass fiber reinforced Polypropylene(PP)
- Seal Material EPDM, Buna-N, Silicone
- All polypropylene filter media construction and have wide chemical compatibility
- Using the high flow pleated cartridges can save the replacement cost, manpower and space
- High flow cartridge filters have high contaminant holding capacity due to the large filtration area
- Pleated high flow cartridges are with consistent high particle removal efficiencies during long filtration life
- The unique radial pleat design of high flow cartridges leads to high flow rate and good filtration efficiency
- Pleated high flow cartridge filters system requires 90% fewer filters than standard 2.5" water filter systems for a given flow rate
- All raw materials are FDA compliant and 100% integrity tested for high flow cartridge filters, directly replace 3M Cuno high flow series filter element
- Refining
- Process Waters
- Pre-RO Filtration
- Machine Coolants
- Boiler Condensate
- Petroleum Chemical Industry
- Injection & Produced Waters
- Ground/Reclaimed/Waste Waters
Operation Data for MP Series High Flow Pleated Cartridges
- Suggested Maximum Flow Rate 1560 LPM
- Maximum Operating Temperature 80℃
- Maximum Forward Differential Pressure 50 psid @ 68°F (3.4 bar @ 20°C)
- Recommended Change-out Differential Pressure 35 psid @ 68° (2.4 bar @ 20°C)
