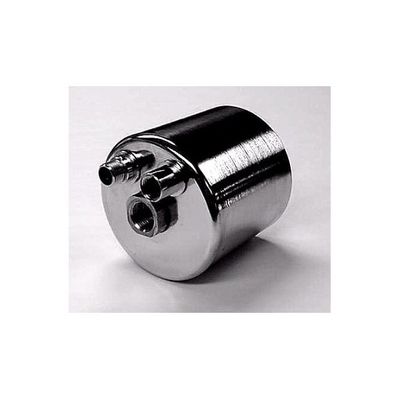

PumpWorks - Model PW2102 -High Flow, Rate-Controllable Liquid Pump

• Simple on/off switch
• Dry contacts
• VRC 2000 Controller
• 4-20 mA systems
• PC or PLC interface
• Custom controls available

• Magnetically driven
• Leak-proof
• Pump & motor in one package
• Integral solid state circuit board for easy controllability and pump protection
• Compact for flexible installation
• Quiet (<60 db)
• Sealless and oilless
• Self priming
• Dead-head and run dry capable
• Integral overload protection

Performance
(all fiqures are maximums, tested on water @ room temperature)
Volume: 46gph
Pressure:    75 psig
Inlet Suction: 14 in. Hg
Inlet and System Pressure: 1400 psi
Particle Size: 1/32"
Viscosity: 20,000+ cps
Fluid Temperature:    140 °F
Power Requirements (watts): 80-130

Other

Specifications Weight: 4.8 lbs
Inlet and Discharge Port: 3/8" FNPT
Voltage (60Hz, 1 Phase): 120V

Materials

Piston Cylinder: 316 Stainless Steel
Housing: 316 Stainless Steel
Elastomer Option: Fluorel (Viton equiv.) EPDM, Neoprene
Piston: Coated 416 SS
Connections: Electroless Nickel plated 416 SS
