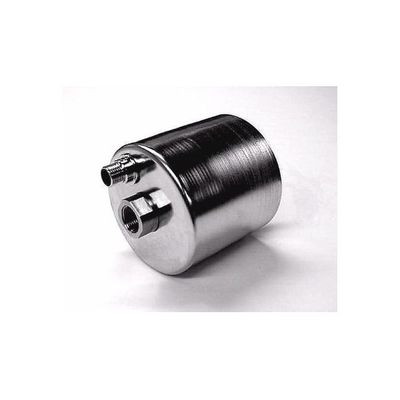

PumpWorks - Model PW2101 -High Flow, Single Rate Liquid Pump
The PW2101 has single rate capability for low-cost, simple on-off operation. For pumps with integral rate control capabilities, consult the PumpWorks, Inc. General Catalog for selection assistance within the full line of versatile dual solenoid pumps.
- Magnetically driven
- Leak-proof
- Pump & motor in one package
- Integral solid state circuit board for easy controllability and pump protection
- Compact for flexible installation
- Quiet (<60 db)
- Sealless and oilless
- Self priming
- Dead-head and run dry capable
- Integral overload protection
Performance
(all fiqures are maximums, tested on water @ room temperature
Volume: 46gph
Pressure: 75 psig
Inlet Suction: 14 in. Hg
Inlet and System Pressure: 1400 psi
Particle Size: 1/32"
Fluid Temperature: 140°F
Power Requirements (watts): 80-130
Other Specifications
Weight: 4.8 lbs
Inlet and Discharge Port: 3/8" FNPT
Voltage (60Hz, 1 Phase): 120V
Materials
Piston Cylinder: 316 Stainless Steel
Housing: 316 Stainless Steel
Elastomer Option: Fluorel (Viton equiv.) EPDM, Neoprene
Piston: Coated 416 SS
Connections: Electroless Nickel Plated 416 SS
