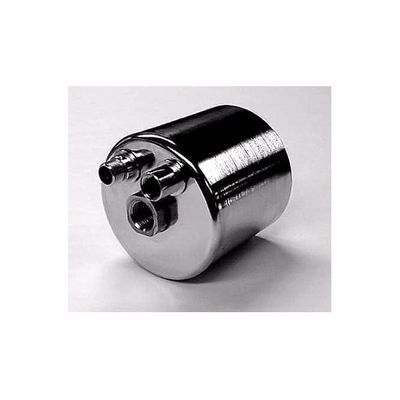

PumpWorks - Model PW2002 -High Flow, UL-Listed, Rate-Controllable Liquid Pump
The PW2002 is rate-controllable for infinite flow adjustablity Control options: Simple on/off switch, Dry contacts, VRC 2000 Controller, 4-20 mA systems, PC or PLC interface, Custom controls available.
Most popular related searches
- Magnetically driven
- Leak-proof
- Pump & motor in one package
- Integral solid state circuit board for easy controllability and pump protection
- Compact for flexible installation
- Quiet (
- Sealless and oilless
- Self priming
- Dead-head and run dry capable
- Integral overload protection
Performance
Volume: 46 gph
Pressure: 45 psig
Inlet Suction: 14 in. Hg
Inlet and System Pressure: 1400 psi
Particle Size: 1/32”
Viscosity: 20,000+ cps
Fluid Temperature: 140 o F
Power Requirements (watts): 80 - 130
Other Specifications
Weight: 4.8 lbs
Inlet and Discharge Port: 3/8” FNPT
Voltage (60Hz, 1 Phase): 120V
Materials
Piston Cylinder: 316 Stainless Steel
Housing: 316 Stainless Steel
Elastomer Option: Fluorel (Viton equiv.) EPDM, Neoprene
Piston: Coated 416 SS
Connections: Electroless Nickel Plated 416 SS
