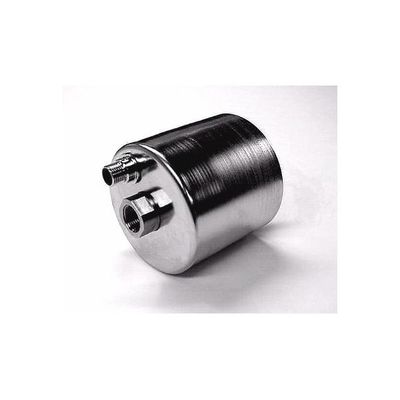

PumpWorks - Model PW2069 -High Flow, UL-Listed, Single Rate Gas Pump
The PW2069 has single rate capability for low-cost, simple on-off operation. For pumps with integral rate control capabilities, consult the PumpWorks, Inc. General Catalog for selection assistance within the full line of versatile dual solenoid pumps.
- Magnetically driven
- Leak-proof
- Pump & motor in one package
- Integral solid state circuit board for easy controllability and pump protection
- Compact for flexible installation
- Quiet (<60 db, depending on installation)
- Sealless and oilless
- Self priming
- Dead-head and run dry capable
- Integral overload protection
Performance:
(all fiqures are maximums, tested on air @ room temperature):
Volume: 0.14 cfm
Pressure: 130psig
Inlet Suction: 25 in. Hg
Inlet and System Pressure: 1400 psi
Particle Size: 1/32"
Fluid Temperature: 140°F
Power Requirements (watts): 80-130
Other Specifications:
Weight: 4.8 lbs
Inlet and Discharge Port: 3/8" FNPT
Voltage (60Hz, 1 Phase): 120V
Materials:
Piston Cylinder: 316 Stainless Steel
Housing: 316 Stainless Steel
Elastomer Option: Fluorel (Viton equiv EPDM,: Neoprene
Piston: Coated 416 SS
Connections: Electroless Nickel Plated 416 SS
