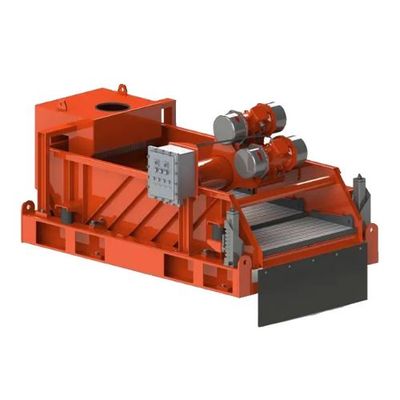

AngXin - Model AXHGS-804 -High G Dry Shaker for Drilling Operations

The High G Dry Shaker is an advanced piece of equipment specifically designed for drying drill cuttings and waste water solids in drilling operations. It operates without the need for chemical additives, ensuring a clean and efficient process. Waste solids are initially processed by a shale shaker before being conveyed via an auger to the dry shaker for further drying. The resulting dried solids are then removed, while the water is directed to a decanter centrifuge for additional treatment. Key features include an adjustable G force of up to 8.0G, a robust sealed deck designed for a ten-year lifespan, and a stainless steel bottom deck to enhance durability. The shaker screen utilizes a frame plate design for easy replacement, and it is supported by high-quality vibration motors from Martin or Oli. Electrical controls by renowned brands such as Siemens, Schneider, and ABB ensure reliability. The shaker's hopper design reduces height, facilitating feed conveyors and enhancing overall operational efficiency.

High G dry shaker is designed for drilling cutting’s drying, waste water solids' drying. It can dry the solids to well delivery condition and does not add any chemicals. The waste solids from shale shaker, then transfered to dry shaker by auger conveyor. The dried was transported away and the water was transfered to decanter centrifuge to second treatment.

The G force can reach 8.0G and it also can be adjusted.
The deck adjustment is coaxial machinery, so can make sure operation steadily.
The shale shaker deck is sealed, the thickness can make sure more than ten years work.
The bottom deck is stainless steel material, thus improve the working life.
The deck is whole heat treatment, thus can meet the requirement the ling time high vibration work.
The shaker screen is frame plate type, and the wedge-shaped block is easy to change screens.
The vibration motor is famous brand, Martin or Oli.
The electric control is famous brand, such as Siemens, Schneider and ABB etc.
Less vulnerable parts, easy operation and maintenance, all vulnerable accessories can be changed with international brand.
Hopper type feeding way design, effectively reduced the height size, convenient for the feed conveyor

Model: AXHGS-804
Vibration mode: Linear motion
Treating capacity: 150 m3/h
Motor power: 2 x 1.94 KW
Screen quantity: 4pieces
Screen size: 1165 x585 mm
Screen area: 2.73 m2
Output force: 8.0 G
Double amplitude: 4.4-6.34 mm
Deck adjustment: -3 -+3°
Weir height: 885mm
Explosion-proof: ExDIIBt4
Weight: 1520 kgs
Dimension: 2650x1650x1425mm
