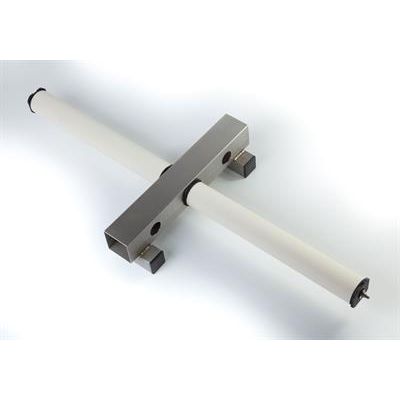

ENVICON Ceramic Aerator - Model EKR AeroMax -High Grade Ceramic Tube Diffuser
Ceramic diffusers are used mainly for continuous aeration in industrial plants where there are problems with the chemical resistance of membrane materials or for ozonation of drinking water plants. ENVICON ceramic diffusers are characterized by their high mechanical strength and good chemical resistance properties, also in the presence of solvents. The ENVICON high-purity glass-sintered ceramic material guarantees excellent perfor-mance and good regeneration properties of elements. Regeneration may occur either by addition of formic acid during plant operation for the built-in condition or by flooding the aeration elements. In extreme cases, the aeration elements may be cleaned with compressed air after disassembly. Heavy organic impurities can be removed by baking. Alternative EKR Mono: The ENVICON EKR sets are also available as prefabricated and ready-for-assembly-units EKR Mono.
Membrane: glass-bound high-grade ceramic
Active length per set EKR 1000 and 1500 mm
Active length per unit EKR Mono: 500 and 750 mm
Pipework: square tube from 80 x 40 mm
Bubble size: Fine bubble. Other porosities available
Aeration: permanent
Application: wastewater and potable water aeration
Country of origin: Germany
