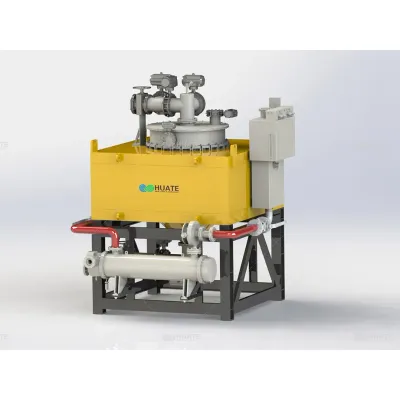

Huate - Model HTDZ -High Gradient Slurry Electromagnetic Separator for Mineral Processing
The HTDZ High Gradient Slurry Electromagnetic Separator, developed by Huate, is a sophisticated magnetic separation solution tailored for the purification and iron removal of non-metallic minerals such as quartz, feldspar, and kaolin. It features a unique electromagnetic coil design, leveraging a high-gradient magnetic field to efficiently segregate magnetic contaminants. The device operates with minimal energy consumption and reduced maintenance costs, supported by an advanced automated control system. Its innovative heat management includes an oil-water exchange system that retains optimal coil temperatures to ensure magnetic field consistency. The separator can handle varying mineral particle sizes, providing versatility in challenging environments. Further, its programmable control system embraces IoT and cloud integration for remote diagnostics and full lifecycle management, optimizing operational reliability and efficiency.The HTDZ series High Gradient Slurry Electromagnetic Separator is the latest magnetic separation product developed by our company.The background magnetic field can reach 1.5T and the magnetic field gradient is large.The medium is made of special magnetically permeable stainless steelto meet the beneficiation needs of different regions and types of minerals.
Suitable for iron removal and purification of non-metallic minerals such as quartz, feldspar, kaolin, etc. It can also be used for wastewater treatment in steel mines and power plants, as well as cleaning contaminated chemical raw materials.
- Unique electromagnetic coil design and efficient cooling method.
The excitation coil of the electromagnetic slurry high gradient magnetic separator adopts fully sealed cooling oil for cooling.The excitation coil is cooled by ordinary national standard No. 25 transformer oil, and the external high- efficiency heat exchanger is used for oil-water heat exchange. The cooling speed is fast, and the coil temperature is stable, ensuring a stable magnetic field.
- With the special magnetic medium, the magnetic field gradient is large and the separation effect is good.
The medium is made of special magnetically permeable stainless steel, which can generate a gradient magnetic field of more than 1.7 times under the excitation of the background magnetic field. It has a strong attraction effect on low- content weak magnetic impurities and has a good iron removal effect.
- Fully automatic operation, low operation and maintenance costs.
The working process of this equipment adopts automated program control, which can achieve unmanned and fully automatic operation, reducing operation and maintenance costs.
- High pressure water positive and negative flushing, clean iron unloading, and no residue.
Use high-pressure water to clean the medium. The cleaning time can be set according to different minerals and different stages of iron removal to improve treatment efficiency.
