Galletti S.p.A
Galletti - Model UTN -High-Head Duct Units
FromGalletti S.p.A

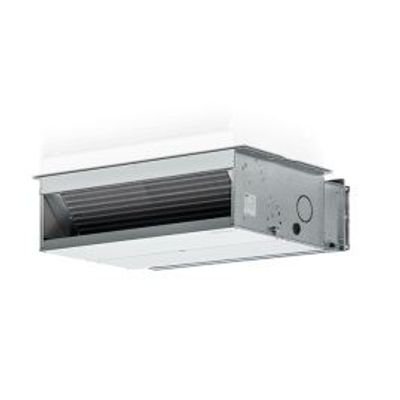

UTN high-head duct units, vertical and horizontal recess mounted, 3-speed motor
Most popular related searches
air intake
centrifugal fan
soundproofing material
panel air filter
drain outlet
pipe system
air conditioning
air filter
centrifuge
air regulations
- Eurovent certification
- Reversible water connections
- ABS centrifugal fans
- Available head up to 185 Pa
- 14 models
- Heat exchanger up to 5 rows
- 2 and 4 pipe systems
- Incorporable ioniser
- 3-speed motor
- Can be integrated into ERGO
- The range of UTN duct units has been designed to air condition rooms where the installation of duct units is required.
- Thanks to the engineering solutions adopted, the UTN units offer high application flexibility:
- Horizontal or vertical installation, thanks to the design of the water drip system.
- May be connected to flexible circular ducts (Ø 200mm) or rectangular shaped ducts.
- Air intake direction to be arranged during installation.
- Bearing structure built from galvanised steel sheet, insulated with condensation proof, soundproof material, inspection panels, fresh air intake setting, quick fastening slots.
- Double suction aluminium centrifugal fans, with inserted blades.
- Three-speed electric motor.
- High efficiency heat exchanger made with copper piping and aluminium fins.
- Water drip tray and drain outlet, suitable for vertical or horizontal installation.
- A broad range of accessories to meet every type of installation requirement.
- Control panels and air filter available as accessory.
