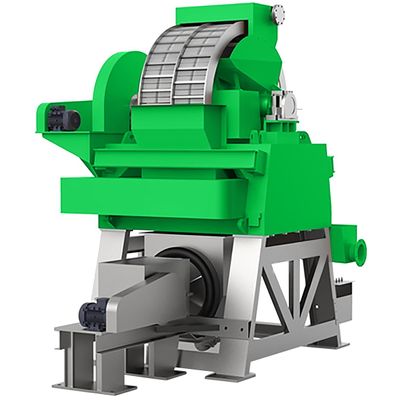

SMF PRODECOLOGIA - Model VEMS-V "Puls" -High Intensity Electromagnetic Separator for wet benefication VEMS-V "Puls"

Designed for wet beneficiation of weakly magnetic ores or for the purification of non magnetic materials from weakly magnetic impurities.

Most popular related searches

Vertical rotor plane rotation for improved separation efficiency.
Maximum background magnetic induction up to 1.3 T (Tesla).
Optimized rod matrix design enabling a specific magnetic force value (H·gradH) of up to 10¹⁵ A²/m³.
Capable of processing materials with particle sizes up to 3 mm.
Special magnetic system and matrix design allows an increase in magnetic induction in material retention zones by up to two times.
Equipped with two electromagnetic coils with independent magnetic field generation.
Separate collectors for separation products in each separation zone.
Adjustable pulsation drive mechanism, allowing changes in frequency and amplitude.
Possibility to perform two-stage enrichment, including re-cleaning (repurification) of the magnetic product from the first stage.
