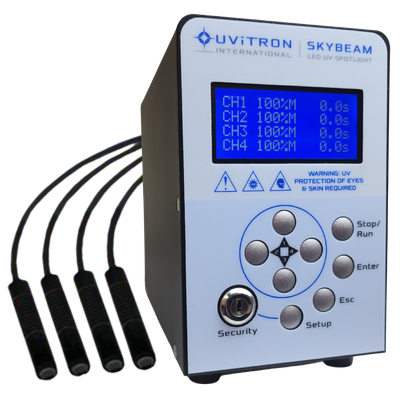

Uvitron - Model SkyBeam -High-Intensity LED Spot Curing System for Production Lines
SkyBeam is a sophisticated LED spot curing system designed for precise curing applications in both benchtop and automated production lines. It features a high-intensity LED output combined with cool operation, making it ideal for a wide range of adhesive and coating curing applications. The system accommodates up to four independently operating light guides, each with adjustable UV light spot sizes achieved by replacing optical lenses. The system's versatility is enhanced by the availability of different wavelengths (365, 385, 395, and 405 nm) and cooling options (fan and convection), ensuring compatibility with various adhesives. The SkyBeam system supports comprehensive remote control through isolated logic signals and RS232 port, allowing integration with machine controllers and PLCs. Its robust design includes a sealed aluminum controller housing for contamination prevention and long operational life, along with a security key switch for parameter protection. This advanced system caters to the meticulous demands of industrial UV curing processes.The SkyBeam is a high-intensity, cool-operation LED spotlight curing system widely used in benchtop and automated production lines. The system includes a long-life light guide and supports up to four independently operating light guides with a variety of lens types. Weighing only 3.25 lbs., the unit features easy to use exposure time controls, foot pedal activation and a built-in power supply, which eliminates the need for an external power adaptor.
Four irradiation channels: Four independent irradiation channels each offer a 0–999.9 second exposure timer and 10–100% power adjustment range. Each channel’s UV light spot size can be adjusted by replacing the optical lens at the end of its light guide, and the service life of each irradiation channel is independently recorded.
External control interface: The system can be remotely monitored and controlled using isolated logic signals available at the rear panel terminals. The digital logic functions allow high-speed control of the SkyBeam for applications requiring a direct interface with machine controllers or PLCs. Control signals include LEDs on/off and a safety interlock that disables LEDs for operator protection. Monitoring signals include system ready, LEDs on and system alarm. An RS232 port is also provided for serial communication with PCs and PLCs.
Long-life flexible light guides: The cable of the UV LED light guides is a two-meter flexible robot cable, tested to over 10 million bending cycles. Four wavelengths are available, including 365, 385, 395 and 405nm.
Cool operation: Both convection cooling and fan cooling UV LED light guides are offered. The fan cooling type has better heat dissipation and is suggested for continuous operation. The UV LED light guide has a built-in temperature sensor that monitors the temperature and prevents the light guide from overheating. The aluminum controller housing is fully sealed to prevent contamination and ensure long system life.
Security key switch: The system comes with a security key switch that prevents operators from making unauthorized changes to the approved running parameters.
System Type: LED Spot
Part #: UV3979
Input Voltage: 100–240VAC ±10%
Input Current (Max): 1.0 Amps at 120V,
0.5 Amps at 240V
Irradiance: From 900–14,000 mW/cm2 UVA (lens dependent)
Curing Area: From 3 mm–15mm spot size (lens dependent)
Size (H x W x D), Weight: 140 mm x 92 mm x 160 mm, 3.25 lbs.
