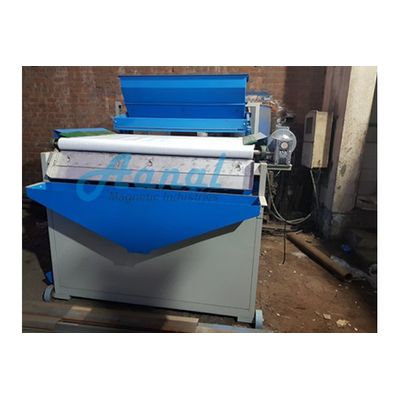

AANAL - High Intensity Magnetic Roller Separator

Under this high Intensity Magnetic Field, weekly Magnetic Contamination can be easily removed effectively High intensity magnetic roller separator are design for very fine quality separation Which has been used successfully in Industrial Minerals applications. The Machine incorporates high energy Rare Earth Neodymium Permanent Magnetic Roller Assembly.

We are one of the leading roller magnetic separator manufacturers. Being in the business since 2008, we have years of experience in producing high quality magnetic devices. We are engaged in offering a wide range of high intensity Roller Type Magnetic Separator that can handle high volumes. Being a customer oriented firm, we develop cost effective, high gradient, and permanent magnetic roller separators. Our high quality magnetic roller separators are widely used in Mines & Minerals industrial applications. We strive to understand the diverse requirements of our clients and offer roller magnetic separator in various technical specifications. They are available at economical prices in the market which is why we have become trusted roller magnetic separator manufacturers.

Having a thorough knowledge of the diverse needs of the market we help our valuable clients reach their desired goals and objectives. The roller magnetic separators offered by us incorporate high energy permanent magnetic roll assembly and generate high intensity magnetic fields.

Being a trusted magnetic roller separator manufacturer, we follow strict quality control measures to deliver high quality and reliable products to our clients. Our high intensity roller magnetic separator can easily and efficiently remove magnetic contamination from food materials also. We are a customer oriented firm and pay attention to the customer`s diverse needs. As we always stick to a dynamic approach, we bring up the best cleaning and processing solutions for various types of Mines & Minerals Industries And the Grain industries.

Backed by an agile and dynamic team, we capitalize on growth opportunities and come up with flexible solutions to fulfill the particular demands of our clients. Our team comprises the sharpest thinkers who strive to deliver high quality roller magnetic separators effectively and smartly. Besides delivering high quality products, we provide outstanding customer services and never fall short of meeting expectations. This has helped us emerge as one of the prominent magnetic roller separator manufacturers.

Operating Method
Short conveyor belt envelopes the Magnetic Roll and tensioning the Ideal Roll. An efficient Feeder discharges material on the Belt. The Ferro Magnetic and Para-magnetic particles are to the Belt while the non-magnetic particles flow freely off the end of the Conveyor.

Slient Features
Magnetic Rolls are available in 65, 75, 100,150 & 200 mm dia. and widths upto1500mm. There are three different Magnetic Strengths i. e. 10000 Gauss, 12,000 Gauss and 15,000 Gauss. The Roll is driven by a 0.5 HP, variable speed DC/AC geared Motor drive adjustable from 0 to 100 RPM. For the purpose of Feeding, Vibratory Feeder with Control is Provided. The Machine is Provided with Abrasion resistant endless conveyor Belts of 0.8mm thickness.

Slient Applications
Aanal Machines are most suitable for various types of Industrial Minerals applications i. e. Abrasive, Refractory and Ceramic Raw Material beneficiation, Alumina, Silica, Carbide, Magnetic, Quartzite, etc. Glass Raw Materials, Clean Silica Sand, quartz, Feldspar, Dolomite etc., Ultra High Purity Quartz Cleaning, Graphite Upgrading, Manganese Orebenification, Bauxite Upgrading, Diamond ore basification, Selective Separation of Garnet / Limonite/Retile, Zircon, Basification of Iron ore, Recovery of Metals from Slag, Removal of Ferro Silicate from Limestone, Magnetite etc.
