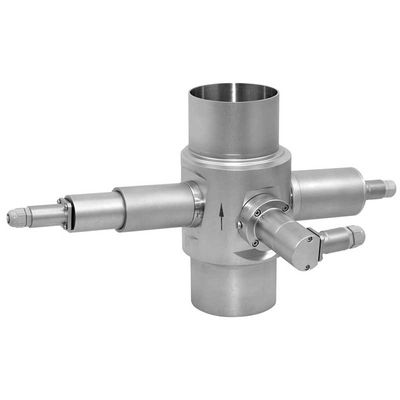

optek - Model DTF16 -High Performance 3 Channel Nephelometric Turbidity Sensor

The optek DTF16 is an advanced function inline turbidity sensor for filtration control, release line turbidity and real-time quality control. It provides both an 11° Forward Scatter Measurement for highly sensitive detection of particles as well as a 90° side scatter measurement for standardized clarity / haze assessment. The stray light suppressed, triple beam - ratio measurement design compensates for product color as well as lamp aging. Factory zero and calibration stability ensure that multiple analyzers will always provide comparable results. Calibrations or zero point settings in the field are not necessary.

• Lifetime Stable Factory Calibration and Zero Point
• Optimized design for stray Light Suppression
• MEBAK Compliant-Broadband Wavelength Filtered Light Source
• High precision 3 angle measurement at 0°, 11 °. 90°

• Pre-calibrated process haze and turbidity measurement in EBC (ASBC) etc.
• No need for maintenance and recalibration
• Meets specific regulations
• Discrete monitoring of larger particles and haze without signal interferences (11 + 90)
