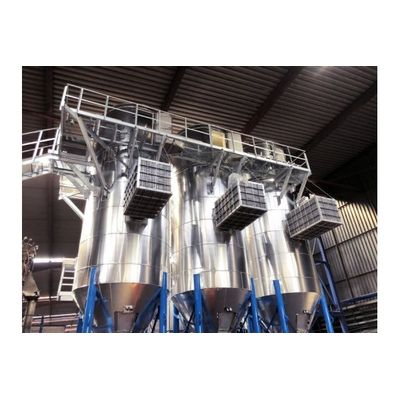

Schulz-Berger - Model Series RS -High-performance Bag Filter
Our high performance bag filters have a dimensionally stable round construction including support foot construction. They function according to the downdraft principle. Depending on the application, you can choose between different types of bag filters [max. 80,000 m3/h per filter]. Their discharge height is up to 30 m, which is possible without a separate chimney.
The reliable integrated compressed air cleaning system is controlled electronically. If required, the filter elements can be easily installed and removed on the clean air side. The filter bags are made of polyester needle felt which meet the highest requirements. On customer request, we can also supply special material combinations for specific applications. The filters are fastened & sealed by stainless steel snap rings, combined with an internal clamping collar.
Each filter is equipped with a ladder and walkway to ensure the best possible maintenance accessibility. Generously dimensioned raw air and clean air doors provide easy access to the interior of the filter. On the outside, high-quality coating systems guarantee comprehensive corrosion protection.
- No demised corners, i.e. less risk of bridge formation and wall condensation
- Maximum stability, i.e. no vibrating housing walls regardless of the vacuum levels or overpressure conditions
- Problem-free realisation of a pressure shock resistant construction within dust explosion hazard areas
- Housing wall thickness: 4–8 mm
- Low wind load due to favourable form factor
- Small footprint due to vertical construction
- Activated charcoal filter can be easily retrofitted
- Tilting container with slide-gate valve,
- Container (240 l) with slide-gate valve,
- Rotary valve with Big Bag,
- Rotary valve with worm gear
