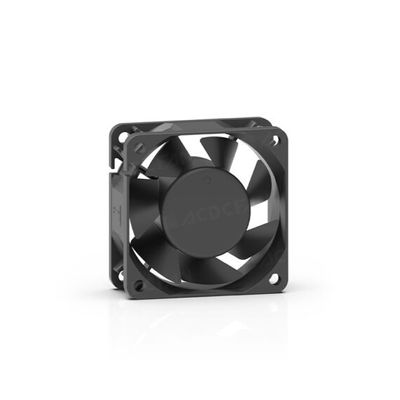

ACDC FAN - Model GE6025 Series 60x60x25mm -High-Performance Cooling Fan

The GE6025 Series is a high-performance cooling fan designed for robust industrial applications. With dimensions of 60x60x25mm, the fan housing is constructed from die-cast aluminum with black or white coating options, ensuring durability and efficient thermal management. The impeller is made from high-strength thermoplastic PBT rated at UL 94V-0, providing reliable operation under varying temperatures. This model supports an operational voltage range of 110V (±10%) and 220V (±10%), with an operational temperature range of -30°C to 60°C. It is impedance protected and features lead wire or pin terminations. Weighing 500g, the fan offers an IP44 protection class and Class F insulation. For enhanced flexibility, it is available in both ball bearing and sleeve bearing configurations, with respective operational temperature ranges and service lives. The fan is ideally used in sectors like telecommunications, intelligent manufacturing, and medical industries, where robust and reliable cooling solutions are essential.
