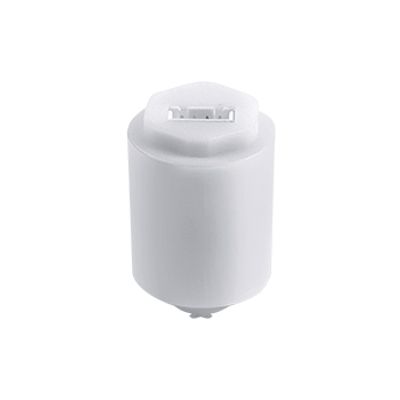

Cubic - Model Gasboard-8500V Series -High Performance-cost-ratio Ultrasonic Oxygen Sensor
Cubic Gasboard-8500V series ultrasonic oxygen sensors are designed for precise oxygen concentration measurement in binary gases. Leveraging Cubic patented V-shaped ultrasonic gas measurement technology and the Time of Flight (TOF) principle, Gasboard-8500V series offer exceptional accuracy, stability, and a maintenance-free design. Gasboard-8500V series are drift-free, require no routine calibration, and have no consumable parts, ensuring long-term reliability and continuous monitoring. The compact size of Gasboard-8500V series enable easy integration into medical ventilators and other critical care equipment. Approved by the European Patent Office (EP 4083618), The V-shaped ultrasonic gas measurement technology in the Gasboard-8500V series is protected in key European markets.Most popular related searches
oxygen sensor
gas monitoring system
gas monitoring
ultrasonic sensor
oxygen concentrator
water oxygenation
flow sensor
oxygen monitoring
oxygen water
- Patented V-shaped ultrasonic technology for precise measurement.
- TOF (Time of Flight) principle enables continuous, drift-free monitoring with no routine calibration or maintenance.
- No consumable parts, ensuring a long lifespan.
Full temperature compensation for consistent performance. - High accuracy, stability, and rapid response.
- Compact design for seamless integration.
- Detect Principle: Ultrasonic Technology
- Detection Range O2 Concentration: 0~100%①
- Resolution O2 Concentration: 0.1%
- Response Time: ≤5s (T90)
- Work Condition: 0~50℃；0~99%RH below（Non-condensing）
- Storage Condition: -20°C~70°C: 0~95%RH below (Non-condensing)
- Work Voltage: DC 4.75-12.6V, Ripple Wave≤50mV
- Average Work Current: ≤40mA
- Communication Interface: UART_TTL(3.3V)
- Product Size: Φ30X46mm
- Life Span: ≥5 Years
Oxygen Generator
Oxygen is an important substances that the human body also other animals and plants depend on for survival. Its importance is as much as water. Oxygen is inseparable from all areas of life.
High Flow Oxygen Therapy Instrument
Medical ventilator is a devicewhich could replace,control and change human normal breathing and Improve respiratory function.
Ventilator
The global Covid-19 continues to spread, which makes ventilator an urgent need ranking after masks and toilet paper.
Anesthesia Machine
Clinical anesthetic machine is through mechanical circuit to deliver anesthetic to patient`s alveolus, form anesthetic gas partial pressure, diffuse to blood, produce inhibition to central nervous.
