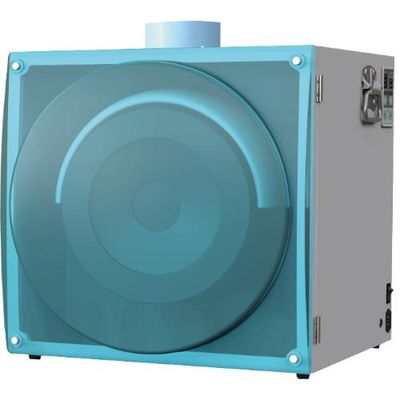

Chiko - Model SK Series -High-Performance Dust Collector
A high performance dust collector that can be used for general environments. The filter can easily be replaced by opening the skeleton panel at the front. The primary filter is a bag type, so can easily be replaced without getting your hands dirty. In addition, the secondary filter incorporates a cylindrical filter for improved air flow efficiency. This ensures that the dust collector is very powerful despite its compact size.
- Operation input signal
- Operation pressure signal (DC1-5V)
- Filter clogging signal
- Remote-control operation switching input signal
- Operating signal
- Abnormality signal
- DC 12V (MAX 100mA)
- Gnd
Primary filter
Filter bag is made of five layers of nonwoven polypropylene fabric. The five layers have different air permeation rates to minimize clogging and provide a filtration rate of 95% or higher for particulates of 45μ and larger. The five layer filter also offers high overall strength;thus, it does not tear easily unlike a paper pack. The clear window provided on the filter shows the amount of collected dust even during operation.
Secondary filter
Polyester molding filter installed. The outside frame of the filter is made of ABS resin and is designed to ensure easy maintenance.
Filtration efficiency is over 99% for 10μ particulates.
