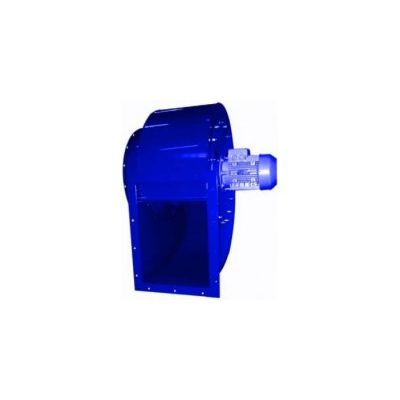

- Model LBT - High Performance Fan

From

0

The high performance fan Mod.LBT with sirocco blades is used for the job where is necessary high capacity and low prevalence. They are used in the suction of clean air with big volumes at low pression. They are built in strong sheet steel painted, steel fan statically and dinamic equilibrated. Fluid temperature: up to 60°C in standard execution; special executions for higher temperature.

Noise values are obtained with the measurement in the 4 point of the compass at the distance of 1,5 mt from the fan. It is excluded the engine. Measurement according to the law UNI 7179-73P.

The fans LBT have 16 orientation positions ( 8 RD and 8 LG) defined looking at the fan from the transmission. Special construction: no spark with protection on the not rotating parts ; no corrosive version is built and painted with special materials ( stainless steel). High Temperature version: with a little fano up to 300°C ( special realization for temperature up to 450°C).
