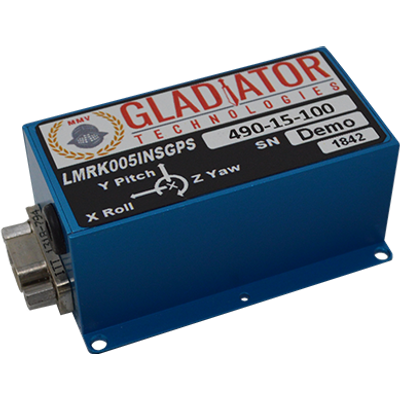

Gladiator Technologies - Model LandMark 005 INS/GPS -High Performance Inertial Navigation System

SHARE
The LandMark 005 INS/GPS presented by Gladiator Technologies is a high-performance inertial navigation system that merges 72 Channel GNSS with VELOX high-speed processing to offer precision and reliability. This system integrates an Extended Kalman Filter to facilitate turning error correction and ensures uninterrupted output during GPS-denied conditions, maintaining accuracy within 3 NMPH Free Inertial. Built to endure the demanding conditions of commercial aerospace environments, the LandMark 005 is adept at tolerating vibration, shock, and electromagnetic interference. Its compact design, capable of withstanding shocks up to 500g, is ideal for precision applications such as UAV flight control, navigation, and stabilization in constrained spaces. With a low noise figure of 0.0028°/sec/√Hz ARW and temperature calibration included, the device does not require ITAR validation for export, making it a practical solution for diverse global applications.
Most popular related searches
inertial navigation system
temperature calibrator
environmental testing
shock and vibration
GNSS

The LandMark™005 INS/GPS is a high performance, low noise Inertial Navigation System with 72 Channel GNSS and VELOX™ High Speed Processing. An Extended Kalman Filter is included for turning error correction and continuous output during GPS denied outages – within 3 NMPH Free Inertial. This INS/GPS is highly durable and can withstand environmental vibration, shock, and EMI typically associated with commercial aerospace requirements. The LandMark™005 INS/GPS is well suited for UAV flight control, navigation, stabilization and pointing in size restricted applications that need precision inertial performance.

0.0028°/sec/√Hz ARW: ARW

0.071 mg/√Hz: VRW

3 NMPH: Free Inertial

500g: Shock Tolerance

0.6: Cubic Inches

140Hz: Bandwidth

  • Low Noise. High Speed.

We put all our products through extensive environmental tests so they’re ready to perform right out of the box. Temperature Calibration is included with every product.

  • VELOX™ High Speed Processing

Gladiator Technologies products are NON-ITAR and do not require a validated export license.

  • Factory Calibrated

Don’t compromise between performance and low price. With our IMUs you can have both.
