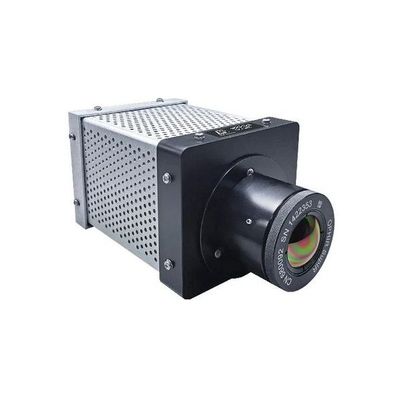

Advanced Energy - Model Mikron MCL640 -High-Performance, Infrared Camera for Temperature Measurement between -40 and 1600ºC
Advanced Energy`s Mikron MCL640 offers unparalleled accuracy for demanding industrial and manufacturing applications. This product is designed with advanced, maintenance-free electronics and industrial protective packaging. Designed to operate in harsh environments. High resolution 640 x 480 pixel thermal imager for process control and monitoring. Serves broad range of process control applications.
The Mikron® MCL640 is a cost-effective, high performance non-contact infrared imager that can serve a broad range of process monitoring applications.
The unique design produces superior images and temperature measurement (±2°C). It offers an unmatched array of protective accessories, including wide angle and telephoto lenses, industrial and hazardous area enclosures, pan-tilt positioner, I/O modules, and process control and automation software.
- Operate in harsh environments
- Obtain the best view with five standard lens options
- Enable superior image quality and temperature measurement for longwave applications
- Benefit from an unmatched array of protective accessories
- Take advantage of unparalleled accuracy
- Maintenance free electronics
- Industrial protective packaging
- Long-term trouble-free process monitoring
- Measures temperature ranges -40 to 120°C and 0 to 500°C, and the HT version measures 200 to 1600°C
- Serves the industry`s broadest range of process control applications
Performance
- Temperature Range: MCL640L: range one - -40 to 120°C (-40 to 248°F) | range two -MCL640HT: 200 to 1600°C (392 to 2912°F): - 0 to 500°C (32 to 932°F)
- Filter: 8 to 14 pm
- Measurement Accuracy: ±2°C or 2% of reading
- Image Update Rate: 9 or 50 Hz
- A/D Resolution: 16 bit
- Pixel Pitch: 17 pm
- Detector: 640 x 480 uncooled micro bolometer array
- Emissivity Correction: 0.1 to 10
- Transmittance: 0.1 to 1.0
Optical Specifications
- Focus: 75 mm autofocus, others manual
- Lenses:
- 8° (75 mm) lens
- 14° (50 mm) lens
- 26° (25 mm) lens
- 57° (11 mm) lens
- 77° (8.2 mm) lens
- Focus Range: Lens dependent
- Digital Zoom: 1 to 8x using LumaSpec RT software
Interface
- Digital: Gigabit Ethernet
- Connections: 4-Pin Power ("pigtail" included), RJ45 Ethernet communication
Environmental Specifications:
- Operating Temperature: 0 to 50*C (32 to 122*F) at housing
- Storage Temperature: -20to70°C(-4to158°F)
- Relative Humidity: Non-condensing conditions
- Weight: 1 kg (2.55 lb) (excludes any protective housing or optional lenses)
- Operating Position: Any operating position
- Housing: 6063 T5 aluminum alloy; finish is alodine, clear, MIL-DTL-5541F
- Dimensions: 127 x 101.6 x 101.6 mm (5 x 4 x 4 in) (without lens)
- Compliance: CE, RoHS
Electrical
- Power Input: 12VDC
- Power Consumption: 10W
Typical Applications
- High voltage electrical equipment and substation fault detection
- Metals process control
- Stove dome and blast furnace
- Stamping
- Hot rolling / rolling mills
- Casting and forging
- Safety monitoring
- Gasifiers
- Pipelines
- Predictive maintenance
- Metal ladles
- Refractory lined furnaces and kilns
- Flare monitoring
- PET bottle production
