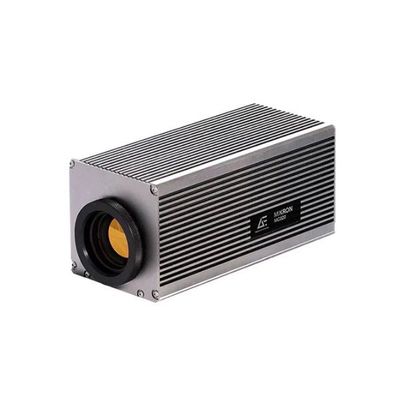

LumaSense Mikron - Model MC320 Series -High-Performance, Non-Contact Infrared Imager

• High performance, cost-effective complete monitoring solution
• Supports low and high temperature applications
• Optional industrial grade rugged enclosure
• Gigabit Ethernet communication
• Support for IO module, OPC, and Modbus through LumaSpec RT Control software

• Utilize turnkey solutions to meet the most severe and challenging thermal imaging system requirements
• Produce superior images and temperature measurement accuracy for mid-wave applications
• Take advantage of advanced maintenance-free electronics and industrial protective packaging
• Operate in harsh environments
• Better monitor a unique range of process monitoring applications using mid-wave infrared (MWIR)

• Rolling processes

Performance
Temperature Range

• MC320M: range one - 150 to 500°C (302 to 932°F) | range two - 200 to 800°C (392 to 1472°F)
• MC320MHT: 400 to 1600°C (752 to 2912°F)
• MC320F: 400 to 1600°C (752 to 2912°F)
• MC320G: 200 to 800°C (392 to 1472°F)
• MC320GHT: 400 to 1600°C (752 to 2912°F)

Filter

• MC320M / MC320MHT: 3 to 5 μm
• MC320F / MC320FHT: 3.9 μm
• MC320G / MC320GHT: 4.8 to 5.2 μm

• Measurement Accuracy: ±2°C or 2% of reading
• Image Update Rate: 60 Hz (Standard), 9 Hz (E-Series)
• A/D Resolution: 16 bit
• Detector: 320 x 240 uncooled focal plane array
• Emissivity Correction: 0.1 to 1.0
• Transmittance: 0.1 to 1.0
• Sensitivity/NETD: 0.108°F at 86°F (0.06°C at 30°C)

Optical Specifications

• Focus Range: 30 cm to infinity
• Lenses
• Standard: 21° (H) x 16° (V)
• Wide: 53° (H) x 40° (V)
• Digital Zoom: 1 to 8x using LumaSpec RT software

Interface

• Analog: TV output (NTSC or PAL)
• Digital: Gigabit Ethernet
• Connections
• 4-Pin Power (LEMO-0K),
• RJ45 Ethernet,
• 3-pin trigger (M8),
• coaxial (BNC)

Environmental Specifications

• Operating Temperature: 0 to 50°C (32 to 122°F) at housing
• Storage Temperature: -20 to 70°C (-4 to 158°F)
• Relative Humidity: Non-condensing conditions
• Weight: 1 kg (2.55 lb) (excludes any protective housing or optional lenses)
• Operating Position: Any operating position
• Housing: 83 x 81.49 x 178.28 mm (3.26 x 3.20 x 7.01 in)
• Protection Class: IP54 / NEMA 4

Electrical

• Power Supply: 12 to 30 V or power over ethernet standards
• Power Consumption: 7 W typical, 13 W max
• Load (analog output): 75 ?
• Isolation: Power supply, communication, and IOs are isolated from each other

• Vessels and furnaces
• Metals process control
  • Hot rolling / rolling mills
  • Burr detection on steel slabs
• Temperature measurement in induction hardening processes
• Predictive maintenance
• Rolling processes
• Rotary kilns
• Torpedo ladle monitoring
• Quality monitoring in glass production
• Through-flame imaging in furnaces and boilers
• Measurement of targets or objects with low emissivity

Specifications are subject to change without notice. Not all options and accessories are available for all models and configurations. Dimensions listed generally refer to standard configurations and module bodies only. Please confirm technical specifications and customizations with a sales representative. Advanced Energy is not responsible for errors or omissions.
