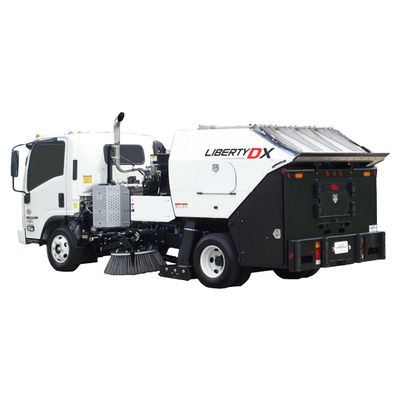

Victory Sweepers - Model Liberty DX -High Performance Parking Lot Sweepers

The DX enables the operator to sweep typical parking lot debris at low RPM for ultra-quiet operation and fuel usage. Then, crank it up and you’re ready for construction and other high demand sweeping jobs like spring cleanup. This versatility makes the DX the perfect sweeper for multi-purpose applications, allowing your sweeping company to perform flawlessly for a wide range of client needs.

The DX features a large 4.35 cubic-yard debris hopper constructed with non-magnetic 304 stainless steel. The hopper dumps at a height of 70-inches. Large inspection doors are provided on each side and dual opening top doors allow easy access for cleaning. The 39-inch diameter gutter broom is mounted on the left side and has hydraulic (not electric) in-cab tilt as standard. A dual gutter broom option is available.

The full-width blast and suction sweeping head on the DX can sweep in reverse and Victory’s exclusive HOODS-UP SM feature allows the operator to raise the front of the sweeping head for bulk trash, leaves and large debris sweeping. Carbide drag-shoes, a litter trap, safety chains and rubber head stops are provided. The 105-gallon dust control system features a 12-volt diaphragm pump with filter, heavy-duty push lock hoses and brass spray nozzles positioned at the broom(s), head and inside the hopper.

A centrifugal, self-cleaning dust separator is located inside the hopper to remove fine dust particles prior to entering the HARDOX® steel blower fan, which is guaranteed for 5 years or 5000 hours against wear-out. A rubber-lined blower housing features an in-cab leaf/light debris diverter system. The hydraulic system on the DX is gear-driven from the auxiliary engine and includes a 13-gallon reservoir, 10-micron spin-on filter, labeled manual override directional valves, pressure ports w/gauge and an optional 12-volt hydraulic backup system. A large central control console is outfitted with heavy-duty, rocker style switches, full engine diagnostics, resettable circuit protection and a padded armrest. Heavy-duty 3M® vinyl wrap is used on the hopper’s exterior to ensure your sweeper looks good for years.

When you want a full spectrum sweeper with power for most any cleanup job you are likely to encounter, insist on the Victory DX.

• S.S HOPPER
• POLISHED STAINLESS STEEL
• 12 VOLT DC PUMP
• 39" LH CURB BROOM
• 39" RH CURB BROOM
• 39" DUAL CURB BROOM
• HYDRAULIC TILT - GUTTER BROOM
• ELECTRIC TILT - GUTTER BROOM
• TOOLBOXES
• PACKAGE TRAYS
• TOOL TRAY
• FRONT BUMPER SPRAY BAR
• HOPPER SHROUD
• HOPPER SHAKER
• HOPPER DRAIN SYSTEM
• HEAVY DUTY FRONT BUMPER
• LED ILLUMINATOR BUMPER
• DETAIL HOSE 6 INCH
• SPARE PARTS PACKAGE
• 82" HEAD
• 90" HEAD
• HOOD LIGHTS
• LED AMBER LIGHT BAR – MEDIUM
• LED AMBER LIGHT BAR – LARGE
• AR SUPERTUBE
• PLASTIC INTAKE TUBE
• CUSTOM VINYL WRAP
• AUX 60 GALLON WATER TANK
• ELECTRIC WATER SYTEM CONTROL
• STANDARD WATER CONTROL SYSTEM
• DUAL STEERNG
• MAGNET BAR
• CAMERA SYSTEM
• DUAL CAMERA SYSTEM
