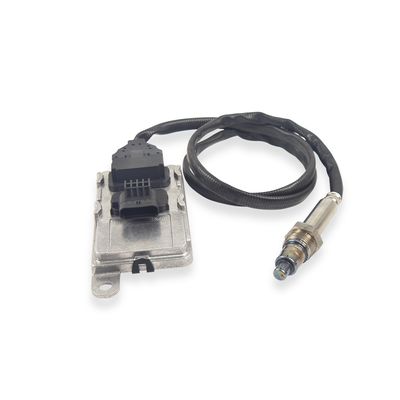

Cubic - Model NOx Sensor -High Performance Probe NOx Sensor Nitrogen Oxide Sensor Engine Parts Exhaust Systems

• Independent R&D and production of chips
• Covering multiple series of car models
• Meet the requirements of stable sensor signals, high accuracy and long service life under various atmosphere environments during vehicle driving

• Measurement Range: 0-1500ppm
• Accuracy: <100ppm:±10[ppm];≥100 ppm:±10[%]
• Exhaust Gas Temperature: ≤800°C
• Exhaust Pressure: ≤2.5bar
• Storage Temperature: ECU: -40℃-115℃; Unpowered: -40℃-95℃
• Power Supply: 16~36V
• Typical Supply Current: 600mA
• Maximum Heating Current: 20A
• Concentration: NOx: 0-1500ppm;Oxygen: 0~21%;
• Response Time Ƭ33−66%: NOx: 1200ms;Oxygen: 1000ms;
• Light-off Time: Nox < 100 s (fresh) ;O2 < 80s;

Part Number
Reference Number
Parameters
5WK96616F
A0091533628/005/61537328
24V 590mm
5WK96642B
A0081539828/004/A0101539328/001
24V 590mm
5WK96652B
A0081539928
24V 590mm
5WK96682C
A0009053503
12V 590mm
5WK96682D
A0009053503-210902
12V 590mm
5WK96682F
A0009053606
12V 590mm
5WK96683D
A0009053603
12V 590mm
5WK96683E
A0009057100
12V 590mm
5WK96683F
A009053706
12V 590mm
5WK97329A
A0101531428/003
12V 590mm
5WK97332A
A0101531728/003
12V 445mm
5WK97332A
A0101531728
24V 890mm
5WK97338A
A0101532228/0002
12V 590mm
5WK97339A
A0101532328
12V 590mm
5WK97341A
A0101531928
12V 590mm
5WK96612F
2296799 1872080 2247379
24V 890mm
5WK96679
2296798
24V 890mm
5WK97400
2294290/2064768/2247380/2296800
24V 890mm
5WK97401
2294291/2064769/2247381/2296801
24V 1143mm
5WK96618D
51154080015
24V 590mm
5WK96721B
51154080016
24V 890mm
5WK96722B
51154080008 51154080017
24V 890mm
5WK96783A
51154080011
24V 420mm
5WK96783B
51154080011 51154080018
24V 420mm
5WK96790B
51154080012 51154080019
24V 590mm
5WK96605C
20873395
12V 590mm
5WK96717A
21984358
24V 890mm
5WK96717B
22827993 22219283
24V 590mm
5WK96718B
22219283
24V 890mm
5WK97366
22303391/A2C93782000-01
12V 590mm
5WK97367
21479638/21567764/22303390
12V 590mm
5WK97368
22827991/7422827991/A2C93782700
24V 590mm
5WK97371
22827993/22219283/20873395
24V 590mm
5WK97372
22827995
24V 890mm
5WK97373
22827992
24V 890mm
5WK96615F
5801754015
24V 890mm
5WK96711C
84414466
24V 890mm
5WK96720A
5801777219
24V 890mm
5WK96733B
5801754016
24V 890mm
5WK96775A
5801754014
24V 890mm
5WK96619D
2011648/ 1793378/ 1836059
12V 795mm
5WK96626B
1836061
24V 490mm
5WK96626C
2011650/1793380/1836061
24V 890mm
5WK96628C
1836060/2011649/1793379
24V 890mm
5WK96661D
2006245
24V 490mm
5WK96675A
2894940/2871979/4984577/4954222/1705572
24V 590mm
5WK96759C
4326864/2006246
12V 490mm
5WK97344B
2006243
24V 890mm
5WK97348A
4326769/A045H141
24V 590mm
5WK96693A
2872298 2894946RX
24V 890mm
5WK96614I
5801363754
24V 590mm
5WK96651A
05149216AB
12V 590mm
5WK96672A
2894943 2894943RX
12V 890mm
5WK96673A
2894941
12V 795mm
5WK96674A
2894939RX/2871978/2894939
12V 590mm
5WK96675A
2871978/2894939RX
12V 590mm
5WK96676A
2894942/2894942RX
24V 590mm
5WK96684A
68067521AA
12V 590mm
5WK96691A
2894944/A034X854/2894944RX
12V 590mm
5WK96692A
2894945/4326870/2872297
12V 590mm
5WK96730
68085740AA
12V 420mm
5WK96740B
A2C95990700-01
12V 590mm
5WK96741B
4326874RX/4326874
12V 890mm
5WK96742B
4326873/A0415S170
12V 1095mm
5WK96749B
4326872RX
12V 590mm
5WK96751C
4326862
24V 590mm
5WK96752C
4326868
24V 890mm
5WK96753
A2C34968000-01
12V 420mm
5WK96753B
4326869
12V 590mm
5WK96754C
4326867 A045S161
24V 890mm
5WK96765A
4326863
24V 590mm
5WK96765B
4326863
24V 590mm
5WK96766C
4326861/A045S155
24V 590mm
5WK97338A
A0101532228/0002
12V 420mm
5WK97339A
A0101532328/0002
12V 730mm
5WK97360
68227468AA
12V 590mm
5WK97366
A2C93782000-01
12V 590mm
