ASI Doors - Model 109 -High Performance Roll-Up Doors for Industrial Applications
FromASI Doors, Inc.

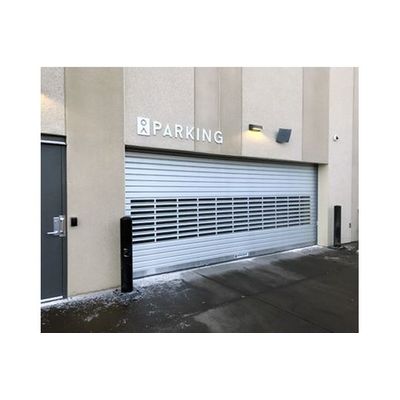

Marathon’s 109 low profile high performance roll-up door, with its low profile header and curved panel profile is ideal for applications with limited headroom and tight side clearances. High speed operation ensures quick entrances and exits for superior access control. Reliable operation means lower maintenance costs and greater over-all security. Insulated slats and high speed operation reduce air exchange, lessen energy consumption and the “stack effect” that can occur in high rise applications.
Most popular related searches
DOOR SIZES
- Up to 26` W
- Up to 22` H
- Consult factory for specific application
PANEL CONSTRUCTION
- High density foam in place insulated slats with a “K” factor of .12 at 75°
OPERATION
- PLC control panel
- 2-speed operation
- Open - up to 42 inches per sec
- Adjustable closing speed
- High output electric direct drive 3 h.p. totally enclosed motor available
- Absolute encoded for calibrating limit position
- NEMA 4 fiberglass control box
PERFORMANCE FEATURES
- Reversing edge for instant stop/reverse
- Send and receive reversing photoeye
OPTIONS
- Rigid, non-insulated anodized aluminum slats
- Extra low profile (reduces overall height by 1")
- Light curtain
- Activation devices
- Adjustable time delay close with auto close feature
- Window slats (min.4 required) (Custom configurations available)
- Perforated window slats (min. 4 slats required, slats used in full grille applications)
- Non insulated perforated grill slats
- Operator and barrel shrouds
- Custom colors (anodized or painted)
WARRANTY
- Two year limited warranty on all components
