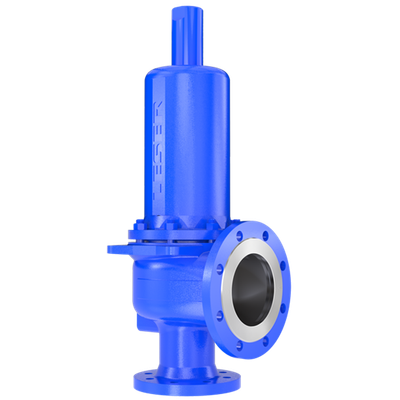

Leser - Model Type 441 442 DIN -High Performance Safety Valves

Full lift safety valve with rolled seat , DIN flange connections. Delivery times: 2 weeks for standard configurations. Gray cast iron, nodular cast iron, carbon steel and stainless steel castings.

Most popular related searches

full lift safety valve

pressure relief valve

All industries up to 40 barg

The optimal solution for:

Pressure relief within 5% pressure increase
Common in steam and gas applications up to 40 barg
Nominal sizes up to DN 400
High required mass flows
Easy maintenance

Set pressure(according to CE): 0.1 - 40 barg | 1.5 - 580 psig
Set pressure(according to ASME): 1.03 - 40 barg | 15 - 580 psig
Temperature(according to CE): -270 to 450 °C | -454 to 842 °F
Temperature(according to ASME): -268 to 538 °C | -450 to 1,000 °F
Capacity: orifice F- to X
Connections DIN EN 1092: DN 20 to DN 400
Connections ASME B16.5: NPS 3/4 to NPS 16
Flange class Inlet DIN EN 1092: PN 10 - PN 40
Flange class Inlet ASME B16.5: Class 150 - Class 300
Body material: 0.6025, 0.7043, 1.0619, 1.4408 | Gr. 60-40-18, SA 216 WCB, SA 351 CF8M
Narrowest flow diameter d0: 18 - 295 mm | 0.71 - 11.61 in
Narrowest flow area A0: 254 - 6.8347 mm² | 0.394 - 105.938 in²
Bellows material: Stainless steel and elastomer
Seat gasket: Metallic, Sealing plate , Soft sealing

Leser - Model Type 441 442 DIN -High Performance Safety Valves

Applications & Industries

Technical Features Type 441, 442 DIN
