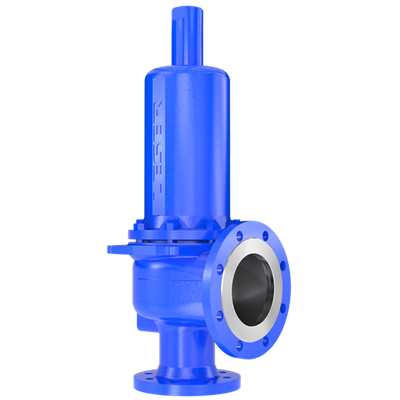

Leser - Model Type 441, 442 ANSI -High Performance Safety Valves
Full lift safety valve with rolled in seat , ASME flanged connections. Delivery times: 2 weeks for standard configurations. Carbon steel and stainless steel casting.
Most popular related searches
full lift safety valve
pressure relief valve
relief valve
mass flow
gasket sealing
metallic gasket
gaskets
safety performance
All industries up to 49.3 barg / 715 psig
The optimal solution for:
- Pressure relief within 5% pressure increase
- Common in steam and gas applications up to 49.3 barg / 715 psig
- Nominal sizes up to NPS 16
- High required mass flows
- Easy maintenance
- Set pressure(according to CE): 0.1 - 49 barg | 1.5 - 710 psig
- Set pressure(according to ASME): 1.03 - 49.3 barg | 15 - 715 psig
- Temperature(according to CE): -270 to 450 °C | -454 to 842 °F
- Temperature(according to ASME): -268 to 538 °C | -450 to 1,000 °F
- Capacity: orifice F- to X
- Connections ASME B16.5: NPS 3/4 to NPS 16
- Flange class Inlet DIN EN 1092: PN 10 - PN 40
- Flange class Inlet ASME B16.5: Class 150 - Class 300
- Body material: 1.0619, 1.4408 | SA 216 WCB, SA 351 CF8M
- Narrowest flow diameter d0: 23 - 295 mm | 0.91 - 11.61 in
- Narrowest flow area A0: 416 - 68,347 mm² | 0.644 - 105.938 in²
- Bellows material: Stainless steel and elastomer
- Seat gasket: Metallic, Sealing plate , Soft sealing
