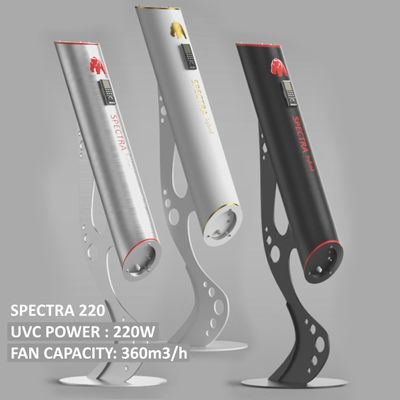

GRIZZLY - Model SPECTRA 220 -High-Performance Sealed Germicidal Radiator

• It is a professional high-performance device used to sterilize air in the presence of people.
• Suitable for spaces up to 200 m2 (with a ceiling height of approx. 2.5 m) or for spaces up to 500 m3
• An important factor of the application is also the number of people in the area, for a better estimate of the choice of equipment contact us.

CLOSED GERMICIDIC RADIATOR FUNCTION

• An enclosed germicidal radiator is a device that is used to disinfect the air in the interior.
• This device is used in the presence of people as it does not emit any UVC radiation into the room.
• Air disinfection is provided by UVC fluorescent lamps, which produce ultraviolet radiation with a wavelength of 253.7 nm and a built-in duct fan with a maximum output of 360 m3 / h of air.
• The fan ensures a smooth flow of air along the UVC lamps, which destroys viruses and bacteria.
• UV light with a wavelength of 253.7 nm is easily absorbed by cells and has the strongest disinfecting properties.
• UV light penetrates the outer cell membrane of microorganisms, passes through the cell body, reaches DNA and permanently changes genetic material.
• All organisms contain DNA (deoxyribonucleic acid) or RNA, in which case the organism dies.
• UVC emitters have been used in healthcare and hospitals for decades to sterilize water, air, instruments but also in other industries.

• Power supply:  230V / 50Hz
• Power of UVC lamps: 220W
• Fan power:  max 360m / h
• Fan control:  Using a fixed potentiometer
• Number of UVC lamps: 4pcs
• Manufacturer of UVC lamps:  PHILIPS or OSRAM
• Fluorescent lamp type: 2G11
• Fluorescent wavelength: 253.7nM
• Control: With ON / OFF switch or with remote control
• Equipment weight without stand: 9kg
• Equipment length:  100 cm
• Equipment diameter: 15cm
• Equipment material:  complete with stainless steel AISI 304
