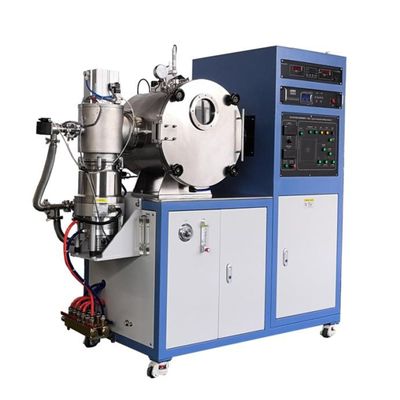

OMNI R&D - Model ORDVGF1010 -High-Performance Small Vacuum Graphitization Furnace
The High-Performance Small Vacuum Graphitization Furnace by Omni R&D is an advanced solution tailored for the precision graphitization and sintering of graphite materials, especially suited to academic institutions and research laboratories. This cutting-edge furnace integrates induction heating technology with a robust vacuum system, achieving a remarkable rated temperature of 3000°C. The system is capable of operating under both vacuum and inflatable protection conditions, ensuring accurate and controlled material processing. Key features of the furnace include a rapid and uniform heating mechanism, a cold-state vacuum limit of 6.67 x 10^-3 Pa, and a temperature control system leveraging a high-precision control meter and a Japan Chino two-color infrared pyrometer, capable of temperatures between 900°C and 3500°C. Additionally, it supports nitrogen and argon atmosphere protection. The furnace boasts a rated power of 35KW, operates on a three-phase 240V, 60Hz power supply, and includes a graphite crucible with dimensions of Φ100 x 100mm. It is an ideal choice for institutions requiring reliable and efficient high-temperature processing equipment.
Introducing the High-Performance Small Vacuum Graphitization Furnace from Omni R&D, LLC – a cutting-edge solution designed for precise graphite material graphitization and sintering processes in academic and research settings. Combining advanced induction heating technology with a robust vacuum system, this furnace delivers unparalleled performance and reliability for a wide range of material processing applications.
The High-Performance Small Vacuum Graphitization Furnace is a versatile and efficient equipment engineered to meet the demanding requirements of graphite material graphitization and sintering in colleges, universities, and scientific research institutions. Leveraging induction heating, this furnace achieves a rated temperature of 3000°C, enabling precise and controlled graphitization processes under inflatable protection or vacuum conditions.
- Induction heating technology for rapid and uniform heating
- Rated temperature of 3000°C for advanced graphite material processing
- Cold-state limit vacuum degree of 6.67 x 10^-3 Pa
- Integrated graphite crucible with dimensions of Φ100 x 100mm (D x H)
- Temperature control via a high-precision temperature control meter and Japan Chino two-color infrared pyrometer (900°C to 3500°C)
- Nitrogen and argon atmosphere protection capabilities
- Robust construction for reliable operation in demanding environments
- Suitable for forming and sintering processes under inflatable protection
- Rated Power: 35KW
- Power Supply and Voltage: Three-phase, 240V, 60Hz
- Heating Mode: Induction Heating
- Temperature Control: Temperature Control Meter and Japan Chino Two-Color Infrared Pyrometer
- Atmosphere Protection: Nitrogen and Argon
- Usage Environment: Temperature Range 5°C to 35°C, Relative Humidity ≤95%
- Graphite Crucible (Φ100 x 100mm)
- Japan Chino Two-Color Infrared Pyrometer (900°C to 3500°C)
- Temperature Control Meter
- Vacuum System for Inflatable Protection
Ideal for advanced graphite material research and processing applications, the High-Performance Small Vacuum Graphitization Furnace from Omni R&D, LLC delivers precise temperature control, reliable vacuum capabilities, and versatile atmosphere protection, ensuring optimal results in your graphitization and sintering processes.
