EURO-P Kleindienst GmbH

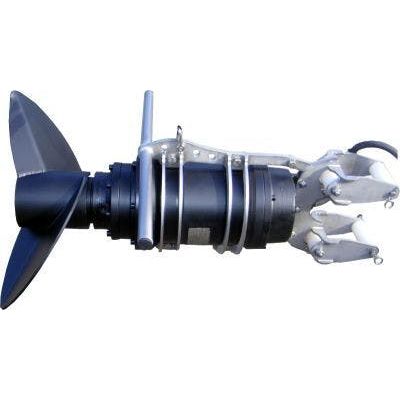

EURO-P - Model RW3 -High-Performance Submersible Mixer
The RW3 is a high-performance submersible mixer with IP68 motor protection, designed for full immersion in slurry, liquid manure, wastewater, and biogas substrates. With motor power ranging from 7.5 kW to 30 kW, it delivers robust mixing capabilities at low speed thanks to a precision gear system (planetary or spur gearbox). Its dual mechanical sealing and oil-filled chamber ensure exceptional reliability, while integrated seal and temperature sensors offer advanced condition monitoring. A stainless-steel sliding mounting system is available for secure attachment to 100 × 100 mm square tubing—ideal for slalom or meander system installations. The propeller is optimized to balance flow velocity, circulation, and energy efficiency, making RW3 a durable and efficient mixing solution for challenging environments.Most popular related searches
submersible mixer
flow velocity
temperature sensor
seal integrity monitoring
seal integrity
laboratory homogenizer
temperature monitoring
flow control
planetary gearing
submersible motor
- Mixing and homogenizing slurry, wastewater, and biogas substrates in storage or process tanks
- Continuous circulation in slalom or meander systems to keep substrate in motion
- Stationary use in agricultural, municipal, or industrial biogas setups
- Ideal where controlled flow and low-speed mixing are critical for process efficiency
- Motor Power: 7.5 kW – 30 kW, IP68, Insulation Class F
- Sealing System: Dual silicon-carbide mechanical seals with oil chamber
- Drive Train: Planetary or spur gearbox for optimal speed reduction
- Propeller: Optimized for balanced jet effect, flow, and power consumption
- Monitoring: Built-in temperature and sealing monitoring (requires Euro-P motor protection switch)
- Mounting: Stainless-steel guide bracket for 100 × 100 mm square tube with cable protection requiredwlw
