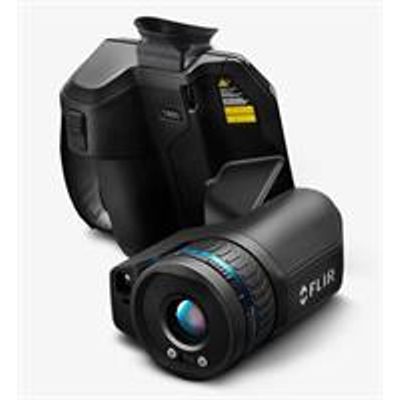

FLIR - Model T860 -High-Performance Thermal Camera with Viewfinder

Improve workflow efficiencies

Develop inspection routes in FLIR Thermal Studio Pro and upload to the T860 to streamline surveys and better manage critical data

Avoid costly outages and component failures

Quickly assess the thermal health of electrical systems, mechanical equipment, and facility-wide systems from any vantage point, in any lighting condition

Make critical decisions quickly

Exceptional measurement accuracy, crisp thermal imagery, and workflow optimizations help you collect and share critical data faster

Overview

Accuracy: ±2°C (±3.6°F) or ±2% of reading

IR Resolution: 640 × 480 pixels

Laser Pointer: Yes

Object Temperature Range: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 2000°C (572°F to 3632°F)

Programmable Buttons: 2

Thermal Sensitivity/NETD: <50 mK at 30°C (14° lens)

Text: Predefined list or touchscreen keyboard

Time Lapse: 10 sec to 24 hrs

Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

Weight & Dimensions (without lens): 1.3 kg (2.9 lbs), 140 × 201 × 84 mm (5.5 × 7.9 × 3.3 in)

Connections & Communications

Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi

Storage Media: Removable SD card

Video Out: DisplayPort over USB Type-C

METERLiNK: Yes

Environmental

Operating Temperature Range: -15°C to 50°C (5°F to 122°F)

Safety: EN/UL/CSA/PSE 60950-1

Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)

Shock & Vibration & Encapsulation: 25 g (IEC 60068-2-27), 2 g (IEC 60068-2-6), IP 54 (IEC 60529)

Imaging & Optical

Color palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

Detector Type and Pitch: Uncooled microbolometer, 12 µm

Digital Camera: 5 MP, with built-in LED photo/video lamp

Digital Zoom: 1-8x continuous

f-number: 1.5

Focus: Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual

Global Positioning System [GPS]: Automatic image tagging

Image Frequency: 30 Hz

Image Sketch: From touchscreen, on infrared image only

Lens Identification: Automatic

Minimum Focus Distance: 1.0 m

Non-Radiometric IR or Visual Video: H.264 to memory card

Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi

Picture-in-Picture: Resizable and movable

Radiometric IR video recording: Real-time radiometric recording (.csq)

Radiometric IR video streaming: Yes, over UVC

Spectral Range: 7.5 - 14.0 µm

Viewfinder: Yes

UltraMax: Quadruples pixel count; activated in menu and processed in FLIR Tools

Measurement & Analysis

Area measurement information: Yes; calculates area inside measurement box in m² or ft²

Laser Distance Meter: Yes; dedicated button

Measurement Presets: No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2

Spot Meter: 3 ea. in live mode

Meter Data

Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation

Power

Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use

Battery Type: Li-ion battery, charged in camera or on separate charger

Shipping Information

Packaging: Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)

Storage Media

Image File Format: Standard JPEG with measurement data included

Image Storage Mode: Infrared, visual, MSX®, Picture-in-Picture
